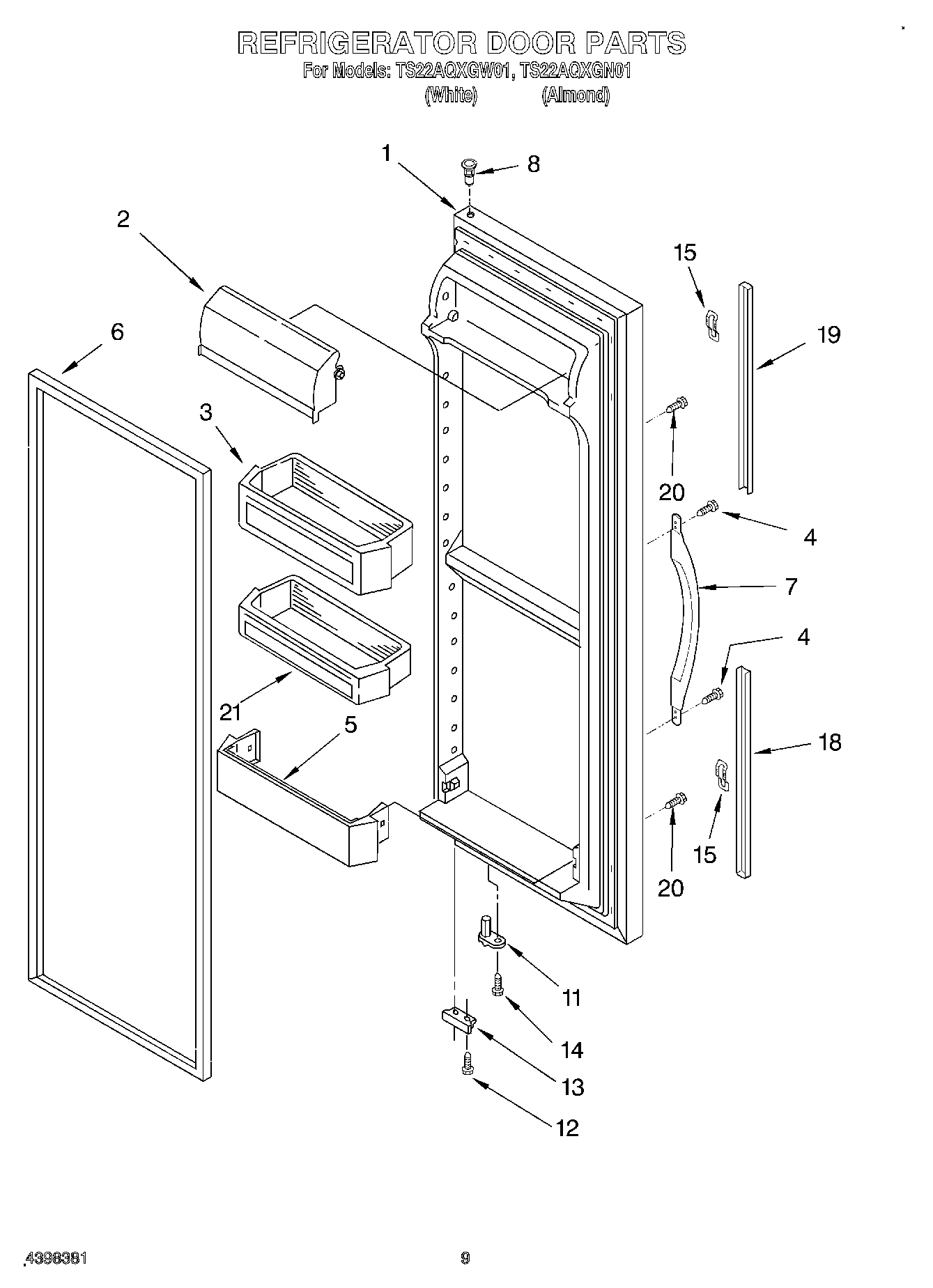

TS22AQXGW01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Almond)
1	Refrigerator Door (Includes Item 6) (White)
2	WP2256101 Whirlpool Dairy Door
3	Shelf Bin (2)
4	WP489491 Whirlpool Refrigerator Screw
5	WP2177962K Whirlpool Refrigerator Door Trim
6	2159073 Whirlpool Refrigerator Door Gasket
7	Handle, Center (White)
7	Handle, Center (Almond)
8	WP2182181 Whirlpool Refrigerator Thimble
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop (Chrome)
14	WP3400012 Whirlpool Refrigerator Screw
15	WP2195327 Whirlpool Refrigerator Clip
18	Extension, Bottom (White)
18	Extension, Bottom (Almond)
19	Extension, Top (White)
19	Extension, Top (Almond)
20	WP3400852 Whirlpool Refrigerator Screw
21	Shelf Bin
