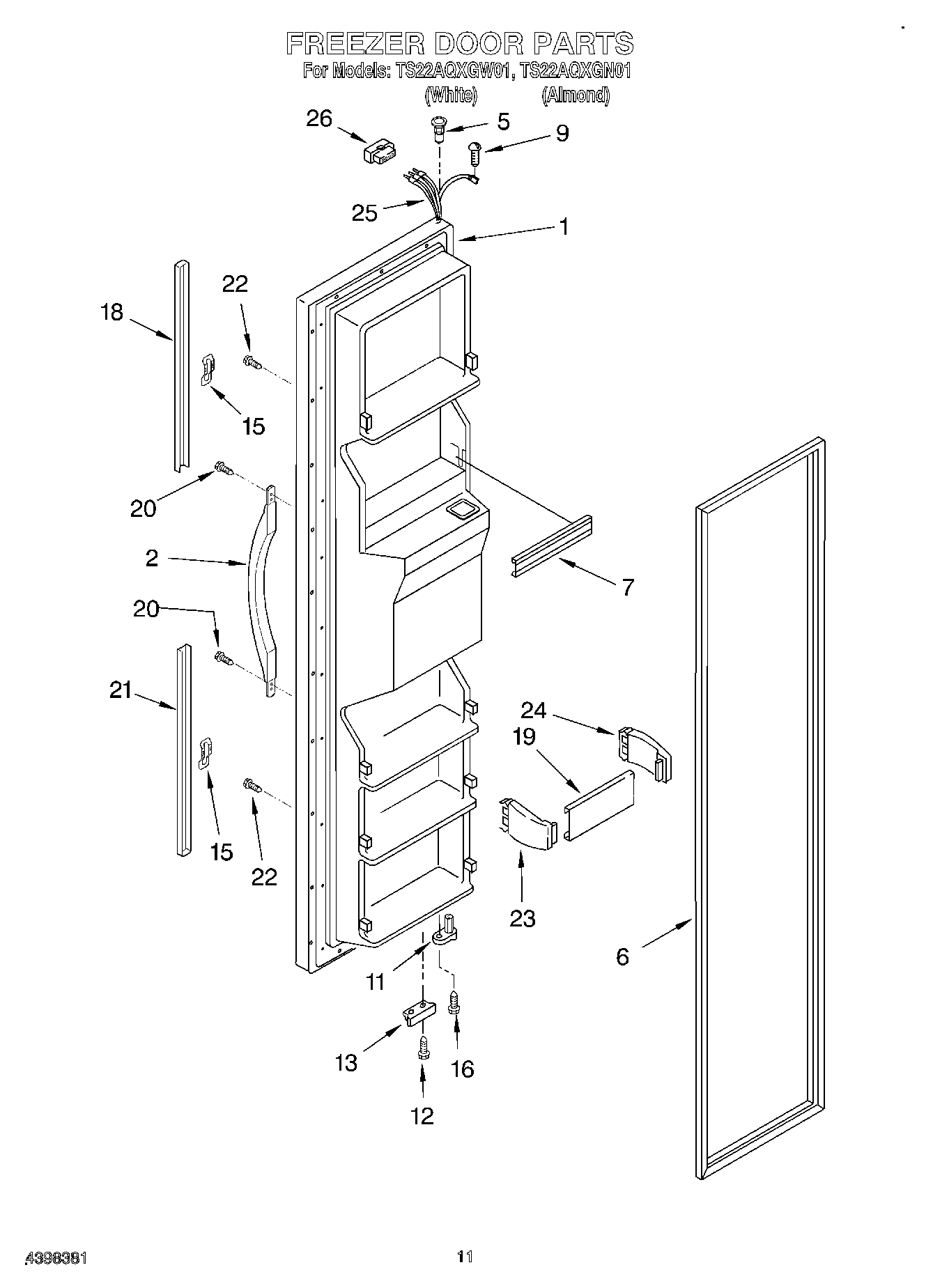

TS22AQXGW01 07 – FREEZER DOOR

TS22AQXGW01 07 – FREEZER DOOR

Written by

in

TS22AQXGW01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Almond (Includes Item No.6 And Dispenser Front Parts))
1Freezer Door (White (Includes Item No.6 And Dispenser Front Parts))
2Handle, Center (White)
2Handle, Center (Almond)
5WP2182181 Whirlpool Refrigerator Thimble
62159072 Whirlpool Refrigerator FIP Gasket
7WPW10307490 Whirlpool Door Trim Assembly
9WP489128 Whirlpool Refrigerator Screw
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
15WP2195327 Whirlpool Refrigerator Clip
16WP3400012 Whirlpool Refrigerator Screw
18Extension, Top (White)
18Extension, Top (Almond)
19Door, Shelf (4)
20WP489491 Whirlpool Refrigerator Screw
21Extension, Bottom (Almond)
21Extension, Bottom (White)
22WP3400852 Whirlpool Refrigerator Screw
23WP2195917K Whirlpool Refrigerator Endcap
24ENDCAP
25Wire Harness
26WP2154473 Whirlpool Refrigerator Connector
