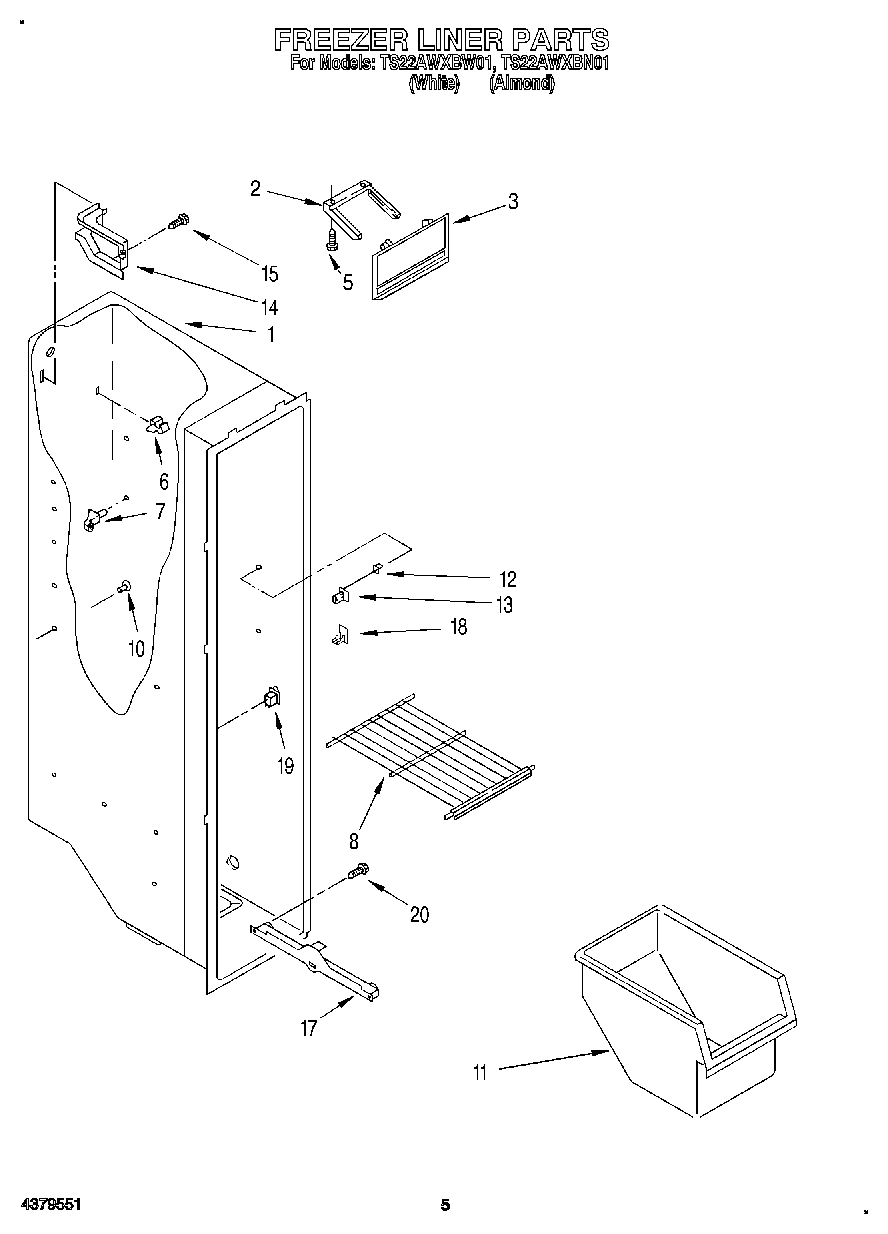

TS22AWXBN01 04 – FREEZER LINER

TS22AWXBN01 04 – FREEZER LINER

Written by

in

TS22AWXBN01 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
3Door, Ice Compartment
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf, Large (2)
8Shelf, Small (1)
10Grommet (8)
11Bin, Freezer
12Stud, Support
13Stud, Front R.S.
14Cover, Wiring
15WP488729 Whirlpool Refrigerator Door Screw
17Slide, Basket (Left Side)
18Stud, Rear R.S.
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20718257 Whirlpool Dishwasher Screw
