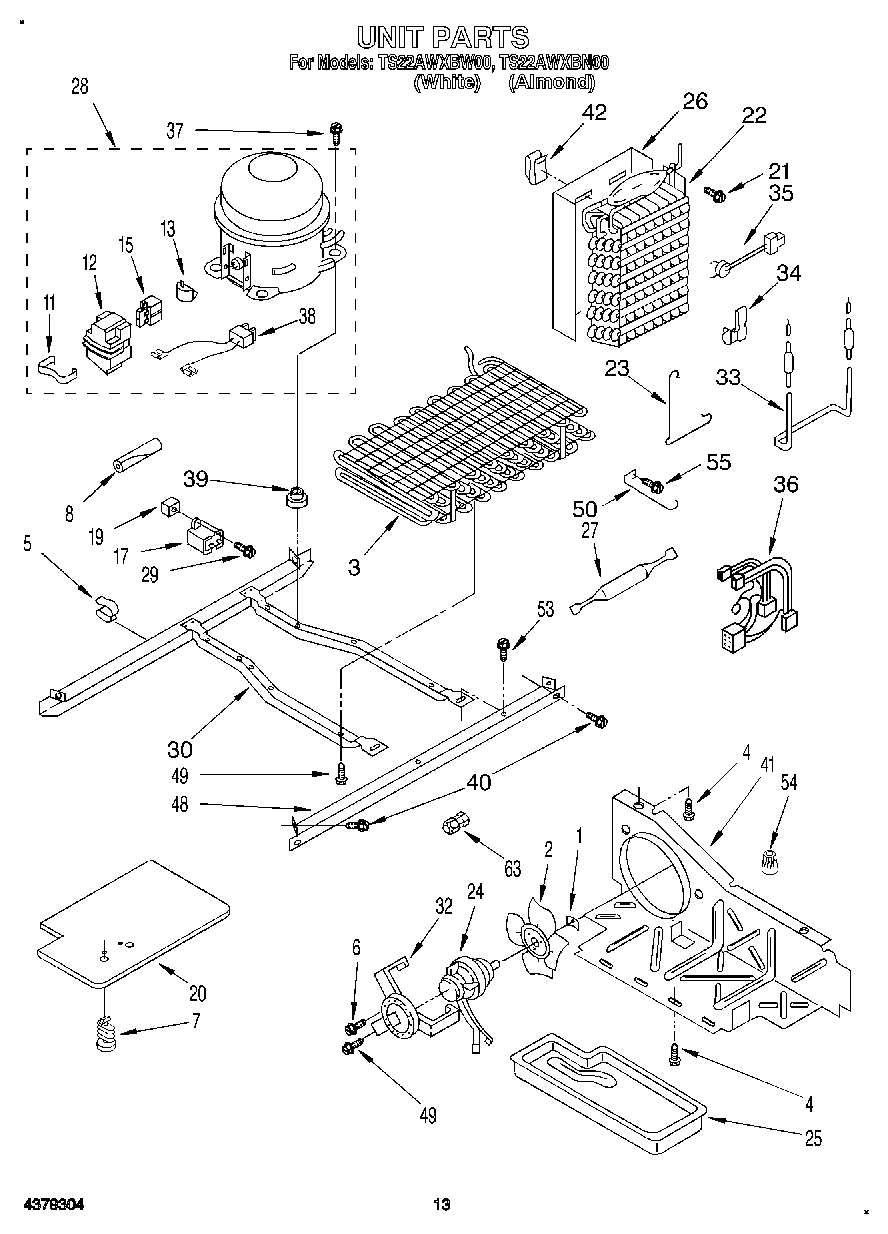

TS22AWXBW00 09 – UNIT

TS22AWXBW00 09 – UNIT

Written by

in

TS22AWXBW00 09 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire
6681390 Whirlpool Refrigerator Screw
7489396 Whirlpool Refrigerator Clip
8SLEEVE
11Strap
12Cover
134388953 Whirlpool Overload Relay
15Relay (See Overload)
17Running Capacitor (Service)
19Screw Grommet
20Cover-Unit Btm.
21WP489478 Whirlpool Refrigerator Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23Clamp
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 11, 12, 13, 15, 17 & 38) (Also Order)
28876765 Whirlpool Primary Mounting Kit Refrigerator
29W11693756 Whirlpool Screw Assembly
302304903 Whirlpool Refrigerator Frame
32Fan, Motor Bracket
33Heater, Defrost
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36Unit, Harness
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49Screw, 8 x 3/8
501105612 Whirlpool Fan Guard
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
55WPW10141625 Whirlpool Refrigerator Screw Assembly
63WP4211117 Whirlpool Refrigerator Connector
63VALVE, ACCESS (1/2“)
63WP978025 Whirlpool Refrigerator Valve
63978030 Whirlpool Refrigerator Valve
63978027 Whirlpool Refrigerator Primary Valve
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63VALVE, ACCESS (5/8“)
