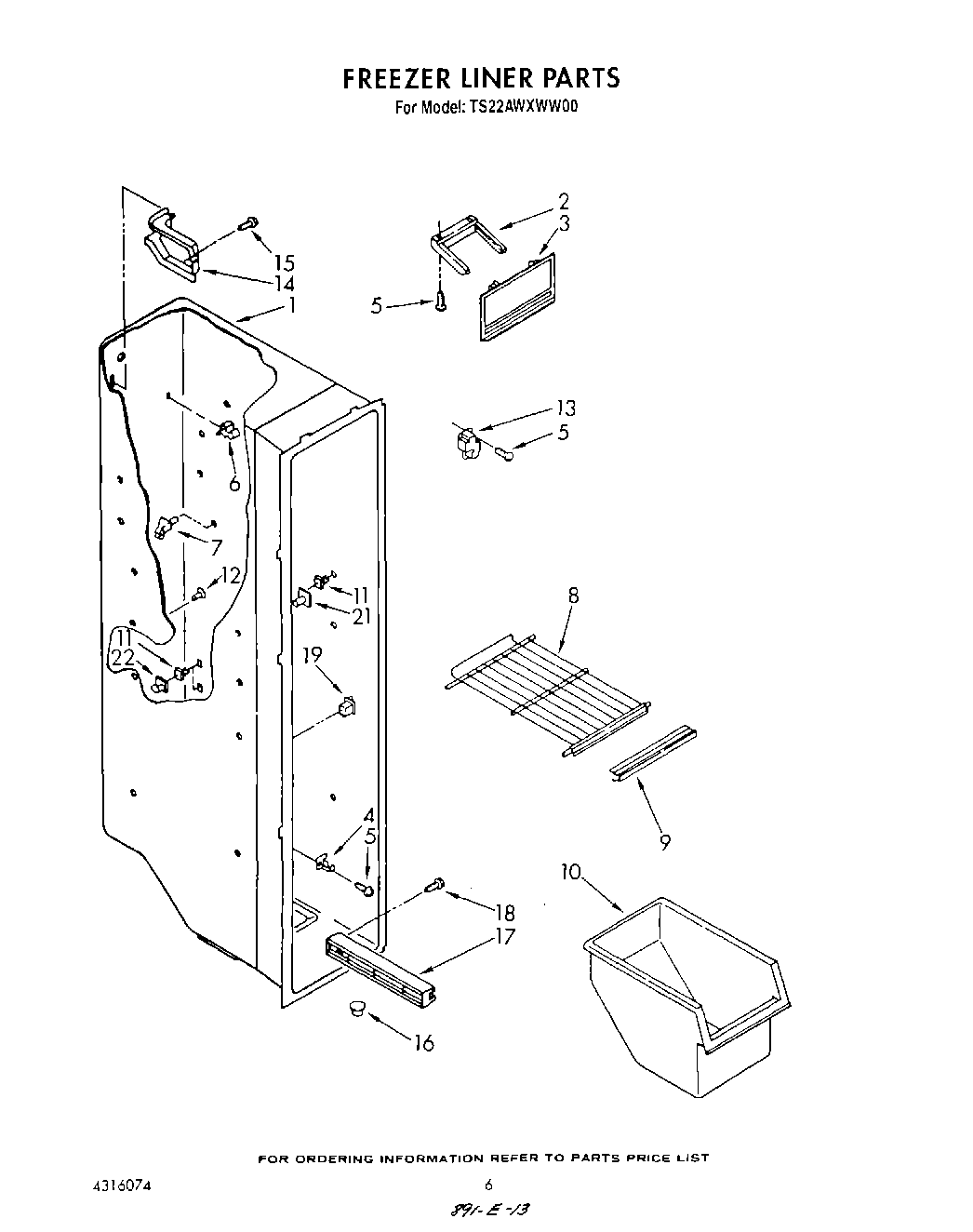

TS22AWXWN00 05 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	door, ice compartment
4	Evaporator, Support
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Shelf (Long)
9	Trim Shelf
10	Bin, Freezer
11	Stud, Support
12	Grommet (8)
13	Terminal Block, Multiple
14	Wiring Cover
15	WP488729 Whirlpool Refrigerator Door Screw
16	Fitting, Drain
17	Slide, Basket (Left Side)
18	Screw, 8 x 1
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
21	Stud, Front R.S.
22	Stud, Rear R.S.
