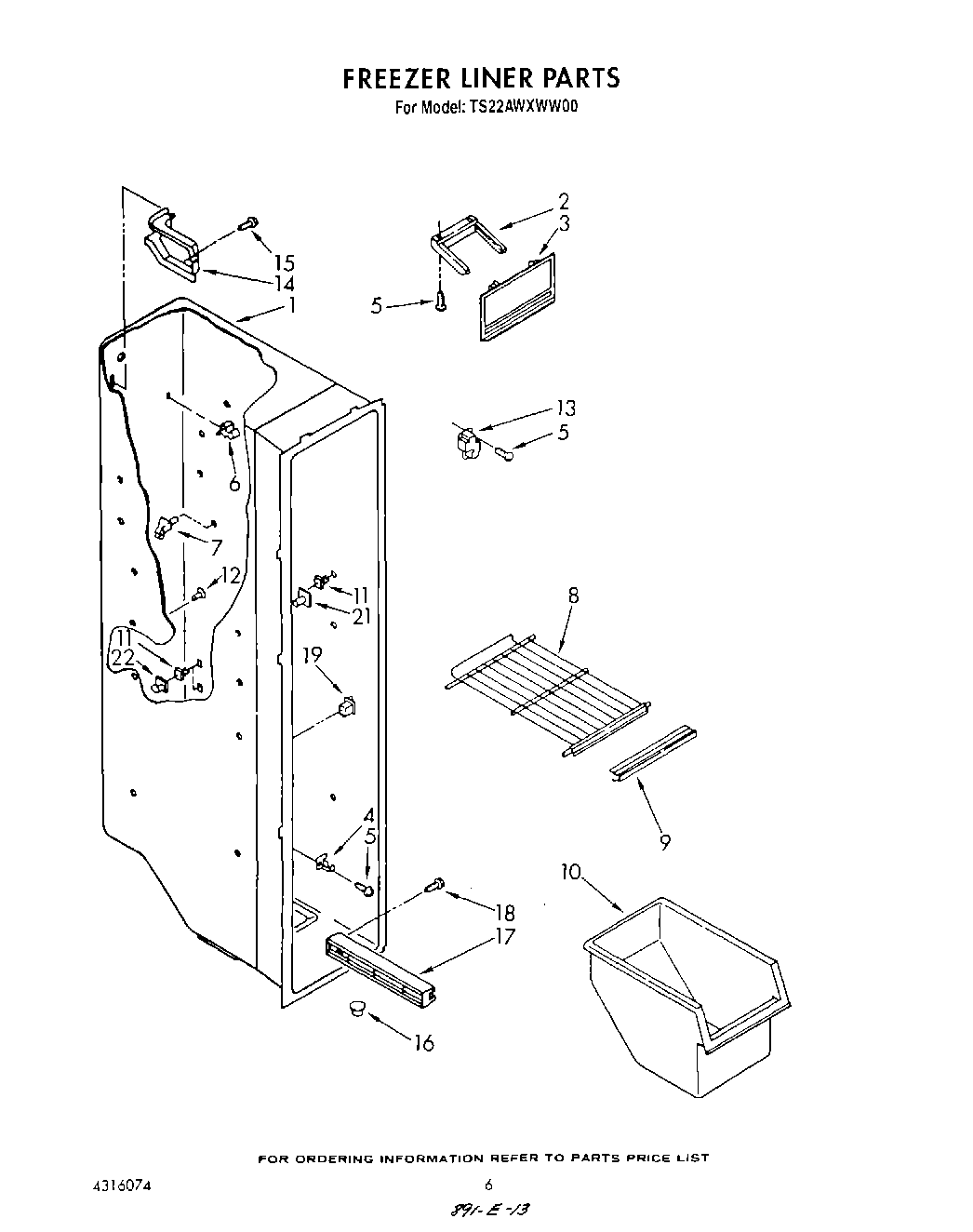

TS22AWXWW00 05 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
3door, ice compartment
4Evaporator, Support
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (Long)
9Trim Shelf
10Bin, Freezer
11Stud, Support
12Grommet (8)
13Terminal Block, Multiple
14Wiring Cover
15WP488729 Whirlpool Refrigerator Door Screw
16Fitting, Drain
17Slide, Basket (Left Side)
18Screw, 8 x 1
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
21Stud, Front R.S.
22Stud, Rear R.S.
