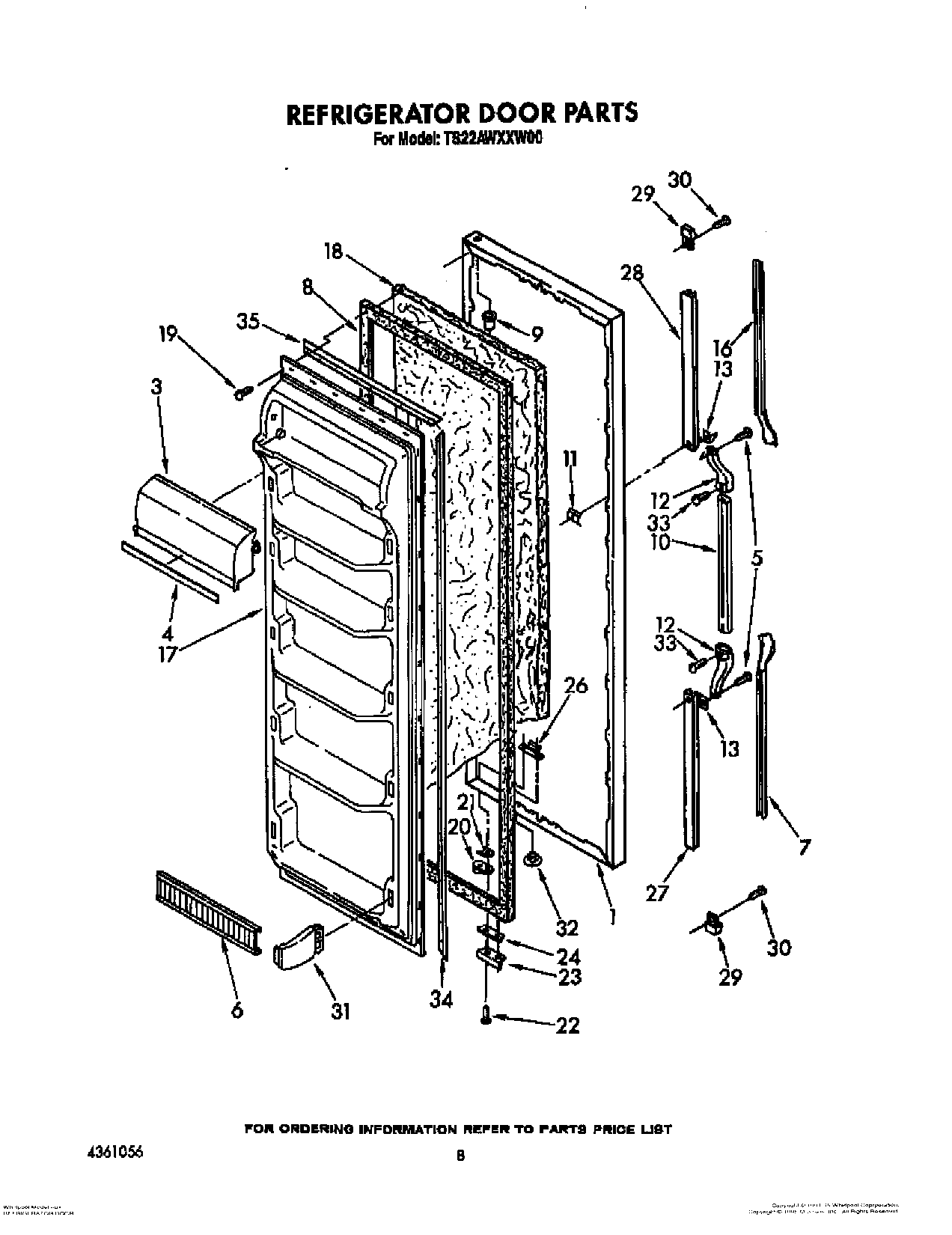

TS22AWXXN00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 18)
1	Refrigerator Door (Almond (Also Order Item 18))
3	Door, Compartment
4	Trim, Compartment Door
6	Trim, Door Shelf
7	Insert, Handle (Black)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
16	Insert, Top (Black)
17	Panel, Interior Door
18	WPL 876029
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
31	Retainer, Door Trim
32	Hole Plug (2)
33	Screw
34	Retainer, Gasket
35	woodgrain handle insert
35	Timeless Black Decor Panel
35	Black Handle Insert
35	Gasket Retainer, Top & Bottom
