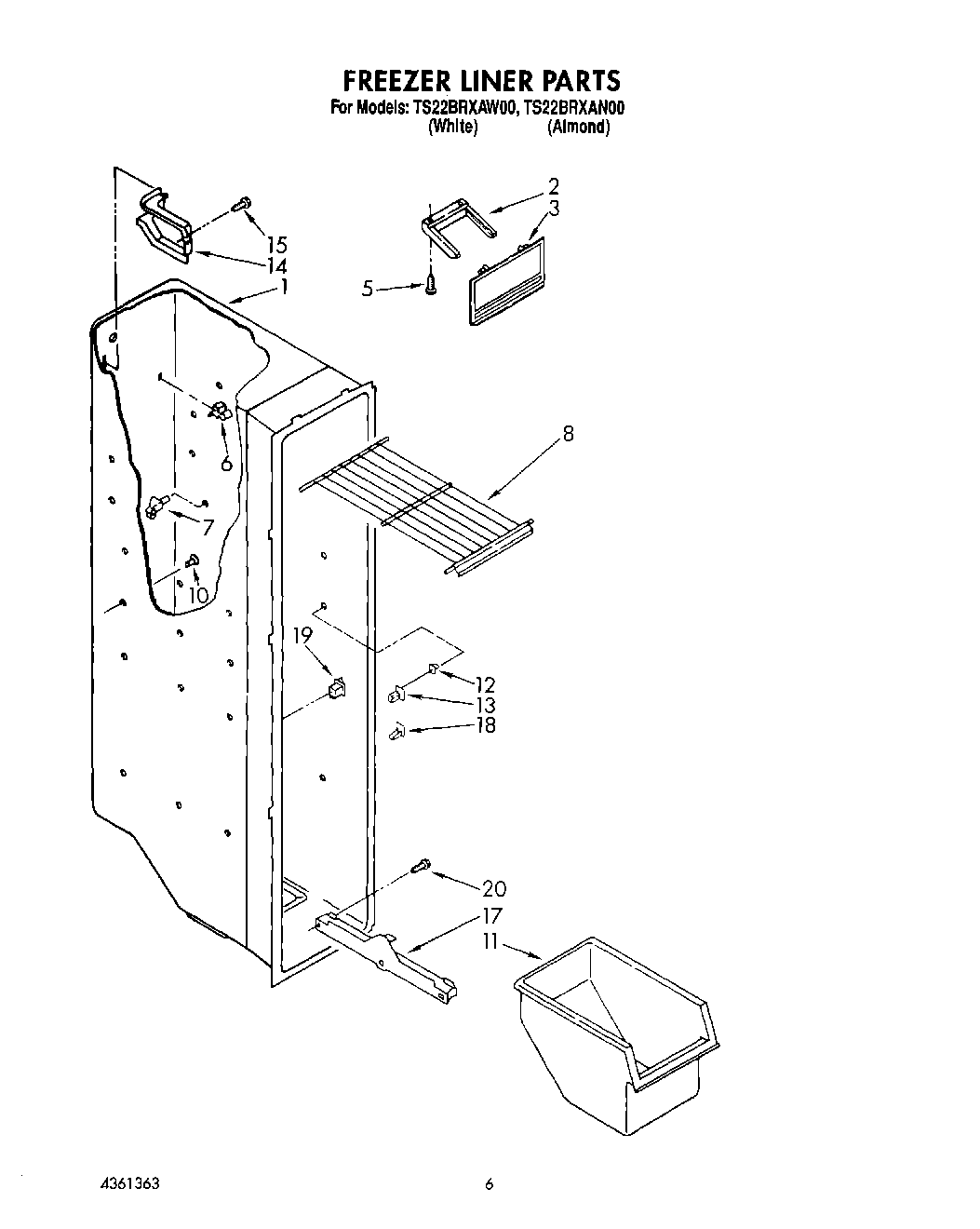

TS22BRXAN00 05 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	Door, Ice Compartment
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Shelf (Small)
8	Shelf (Long)
10	Grommet (8)
11	Bin, Freezer
12	Stud, Support
13	Stud, Front R.S.
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
17	Slide, Basket (Left Side)
18	Stud, Rear R.S.
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	Screw, 8 x 1
