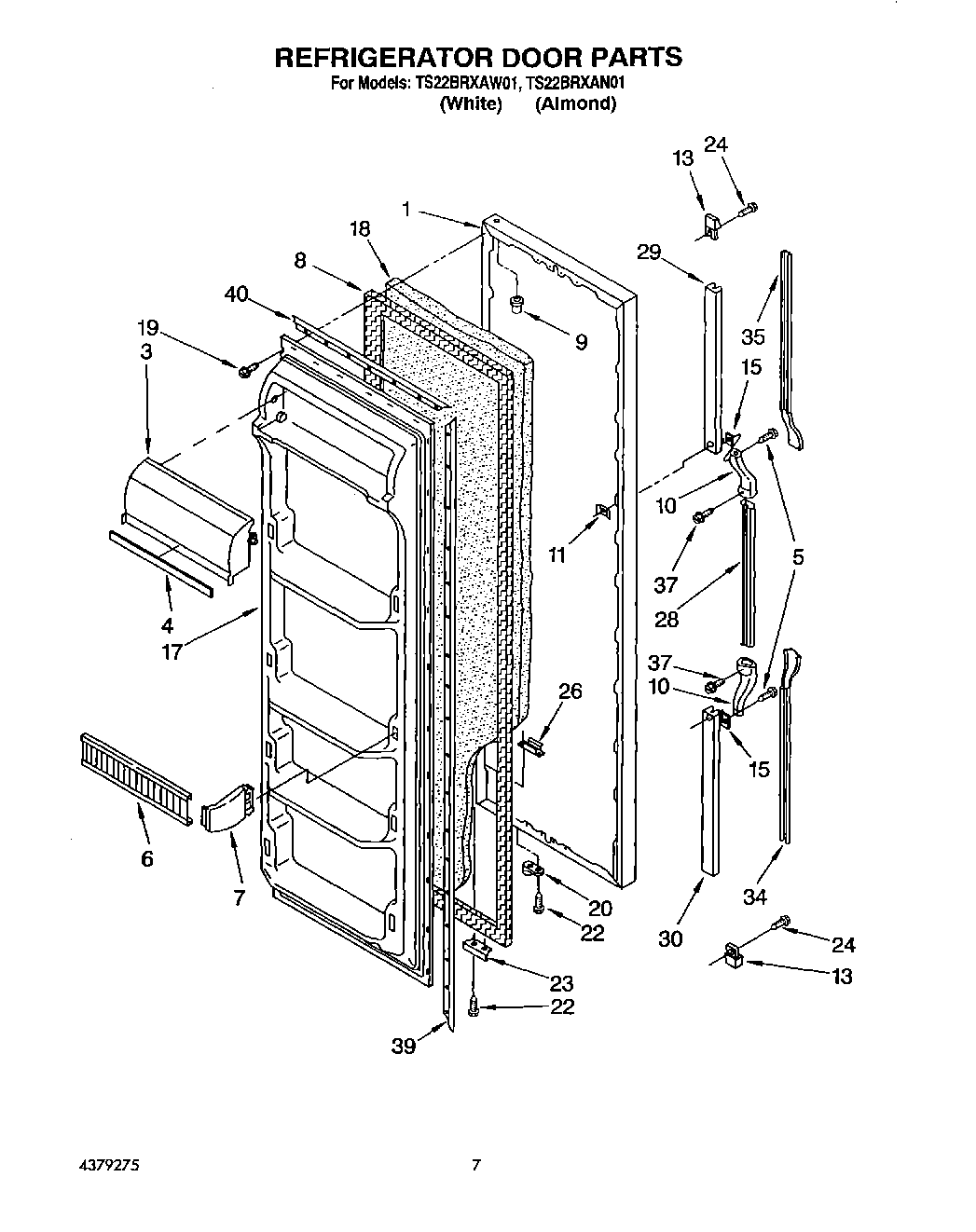

TS22BRXAN01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond (Also Order Item 18))
1	Refrigerator Door (White)
3	Door, Compartment
4	Trim, Compartment Door
6	Trim, Shelf (5)
7	Retainer, Door Trim
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	End Cap, Center Handle
11	Screw Anchor (2)
13	End Cap (2)
15	Shim
17	Panel, Interior Door
18	WPL 876029
19	WP489069 Whirlpool Compactor Screw
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
22	WP999367 Whirlpool Refrigerator Screw
23	Bracket, Door Stop
24	Screw
26	Tap, Plate
28	Handle, Center
29	Retainer, Insert
30	Retainer, Insert (Bottom)
34	Insert, Handle (Black)
35	Insert, Top (Black)
37	Screw
39	Retainer, Gasket
40	Gasket Retainer, Top & Bottom
