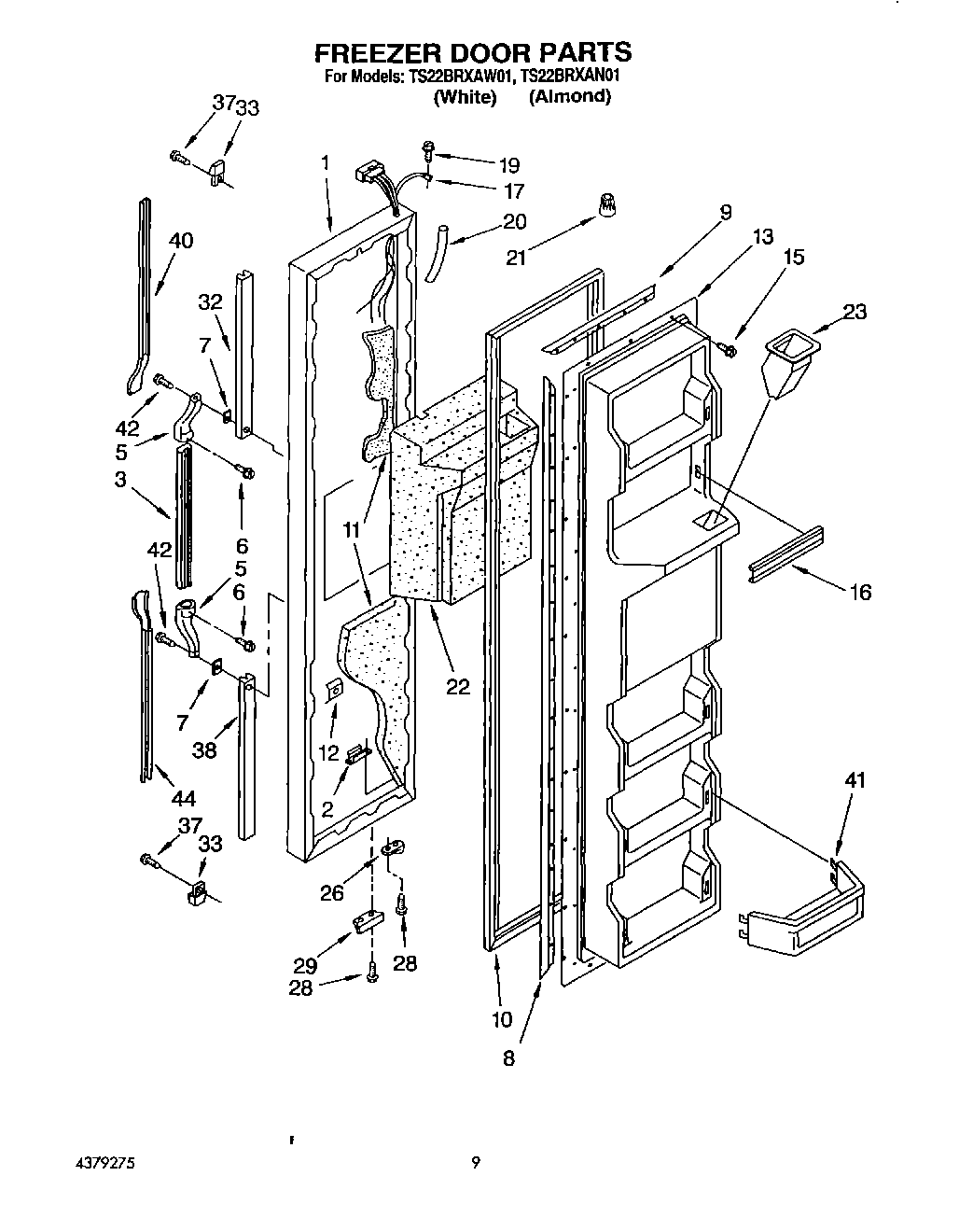

TS22BRXAN01 07 – FREEZER DOOR

Products

Position	Product
1	freezer, door panel (almond (also order item 11))
1	Freezer, Door Panel (Also Order Item 11)
2	Tap, Plate
3	Handle, Center
5	End Cap, Center Handle
6	Screw
7	Shim
8	Retainer, Gasket
9	Retainer, Gasket
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	WP939101 Whirlpool Refrigerator Plate
13	Panel, Interior Door
15	WP489069 Whirlpool Compactor Screw
16	Trim, Door Shelf
17	Harness, Door (Includes Illustration 18)
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
21	Wire Connector
22	Insulation, Dispenser
23	Chute, Ice
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
28	WP999367 Whirlpool Refrigerator Screw
29	Bracket, Door Stop
32	Retainer, Insert
33	End Cap (2)
37	Screw
38	Retainer, Insert (Bottom)
40	Insert, Top (Black)
41	Door, Shelf
44	Insert, Handle (Black)
