TS25AEXHW02 06 – REFRIGERATOR DOOR

TS25AEXHW02 06 – REFRIGERATOR DOOR

Written by

in

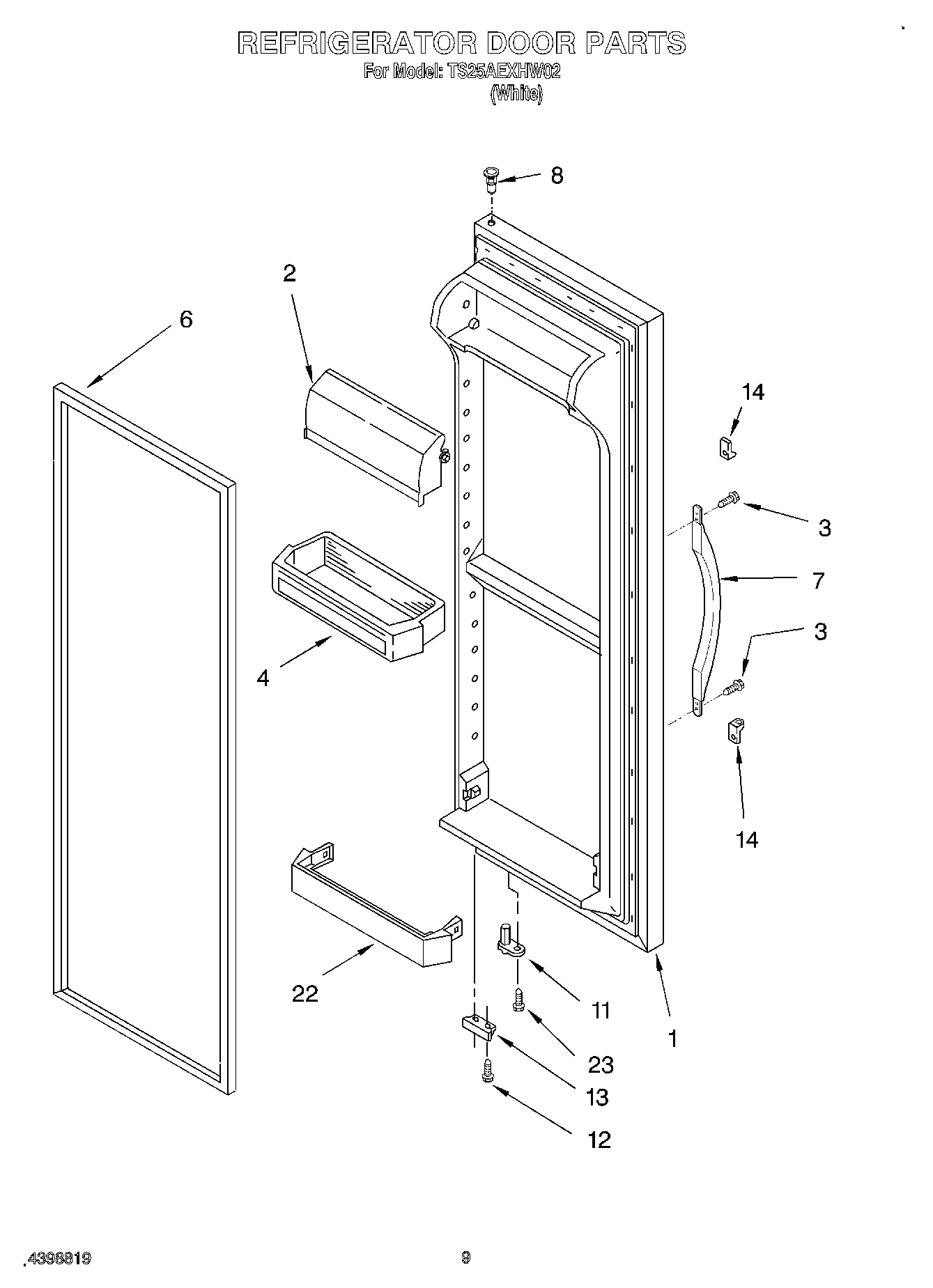

TS25AEXHW02 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
62159075 Whirlpool Door Gasket Seal
7Handle, Center (White)
8WP2182181 Whirlpool Refrigerator Thimble
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
14WP2193353W Whirlpool Refrigerator Trim Handle
22WP2177962K Whirlpool Refrigerator Door Trim
23WP3400012 Whirlpool Refrigerator Screw
