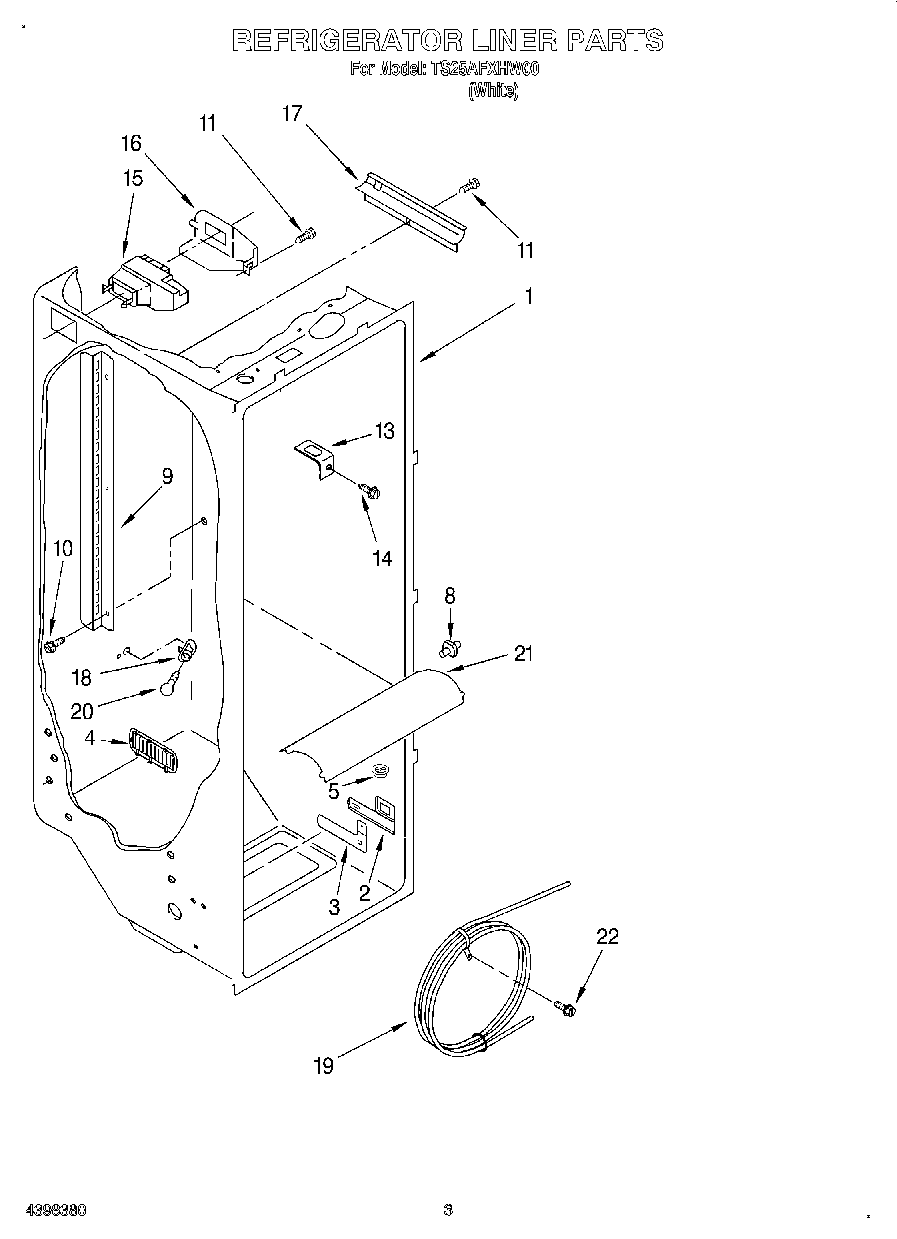

TS25AFXHW00 02 – REFRIGERATOR LINER

TS25AFXHW00 02 – REFRIGERATOR LINER

Written by

in

TS25AFXHW00 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
52171846 Whirlpool Refrigerator Release Valve
84388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9Ladder, Shelf
10WP488729 Whirlpool Refrigerator Door Screw
11W10759522 Whirlpool Screw
13WP2256085 Whirlpool Refrigerator Retainer
14WP488488 Whirlpool Refrigerator Screw
15WPW10151374 Whirlpool Refrigerator Diffuser
162152019 Whirlpool Refrigerator Cover
172150331 Whirlpool Refrigerator Wire Cover
184387478 Whirlpool Refrigerator Light Socket
19WP2256126 Whirlpool Refrigerator Reservoir
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
22Screw (2)
