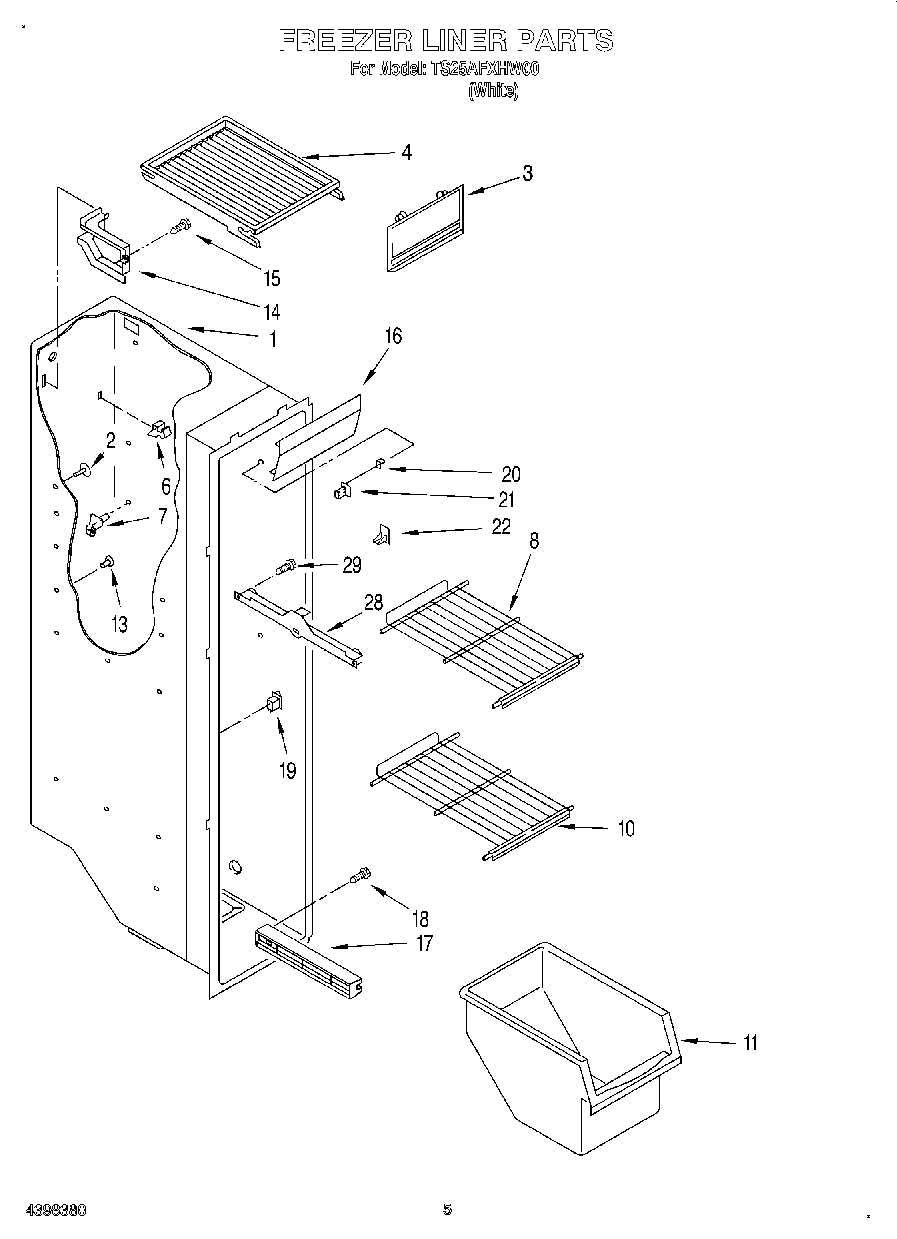

TS25AFXHW00 04 – FREEZER LINER

TS25AFXHW00 04 – FREEZER LINER

Written by

in

TS25AFXHW00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP941839 Whirlpool Refrigerator Button Plug
3WP2171713 Whirlpool Refrigerator Ice Door
4Shelf, Top Compartment
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174267 Whirlpool Refrigerator Wire Shelf
10Shelf (2)
11WP2182971 Whirlpool Refrigerator Freezer Bin
13Grommet
14Cover, Wiring
15SCREW
162171705 Whirlpool Refrigerator Light Lens
17Slide, Basket (Right Side (2))
17Slide, Basket (Left Side (2))
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Stud, Support
21Stud, Front R.S.
22Stud, Rear R.S.
28W10845583 Whirlpool Refrigerator Track
28W10845585 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
