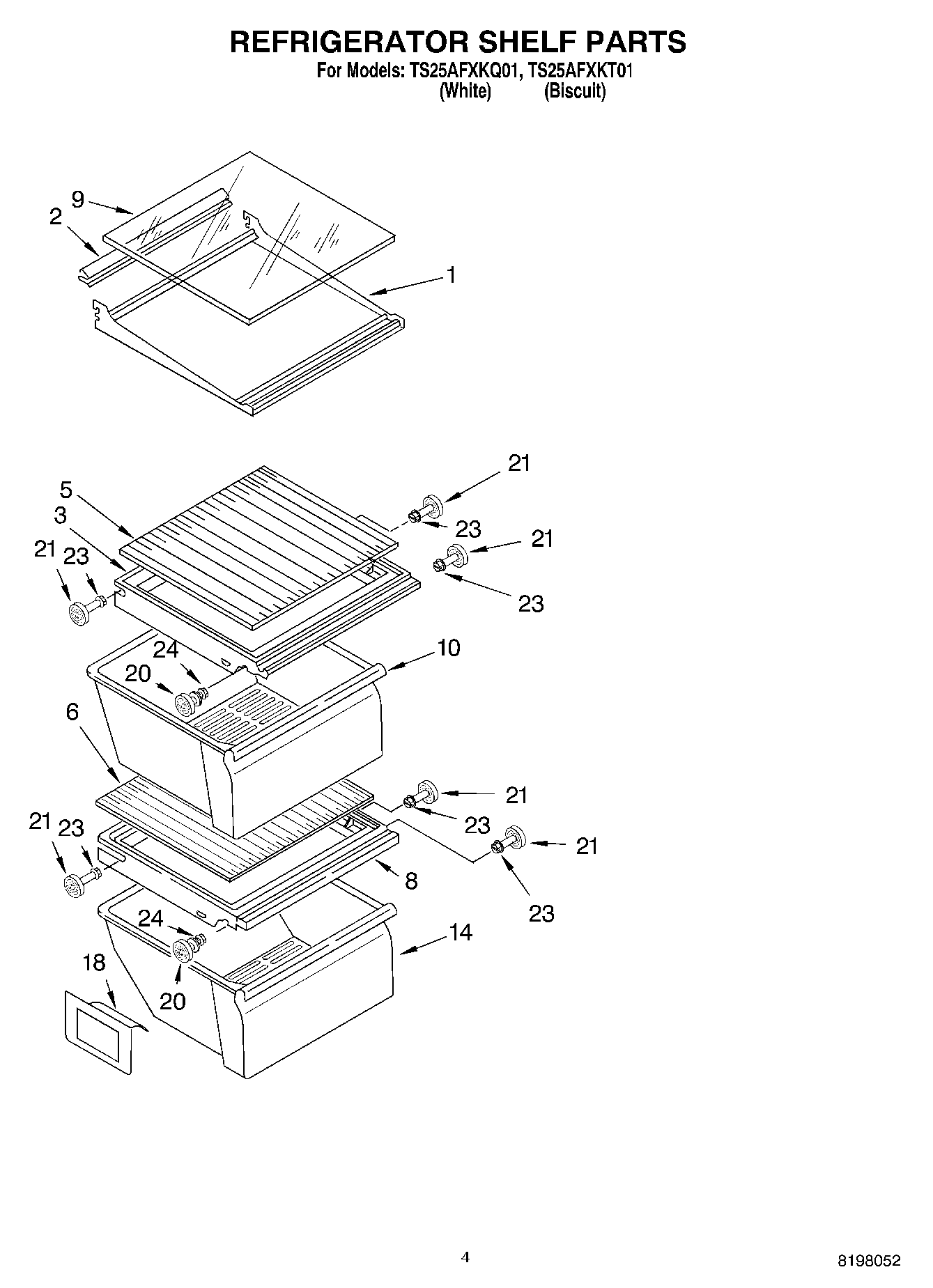

TS25AFXKQ01 03 – REFRIGERATOR SHELF PARTS

TS25AFXKQ01 03 – REFRIGERATOR SHELF PARTS

Written by

in

TS25AFXKQ01 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf, Cantilever (3)
2Retainer
3W10508993 Whirlpool Refrigerator Cover Pan
5W10864399 Whirlpool Glass Shelf
8Cover, Meat Pan
9Glass (3)
10WP2188661 Whirlpool Crisper Pan
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
182179350 Whirlpool Refrigerator Deflector
20W11223328 Whirlpool Refrigerator Shelf Stud
21WP2196483 Whirlpool Refrigerator Shelf Stud
23WP3400806 Whirlpool Screw
24WP3-24004-109 Whirlpool Refrigerator Screw
