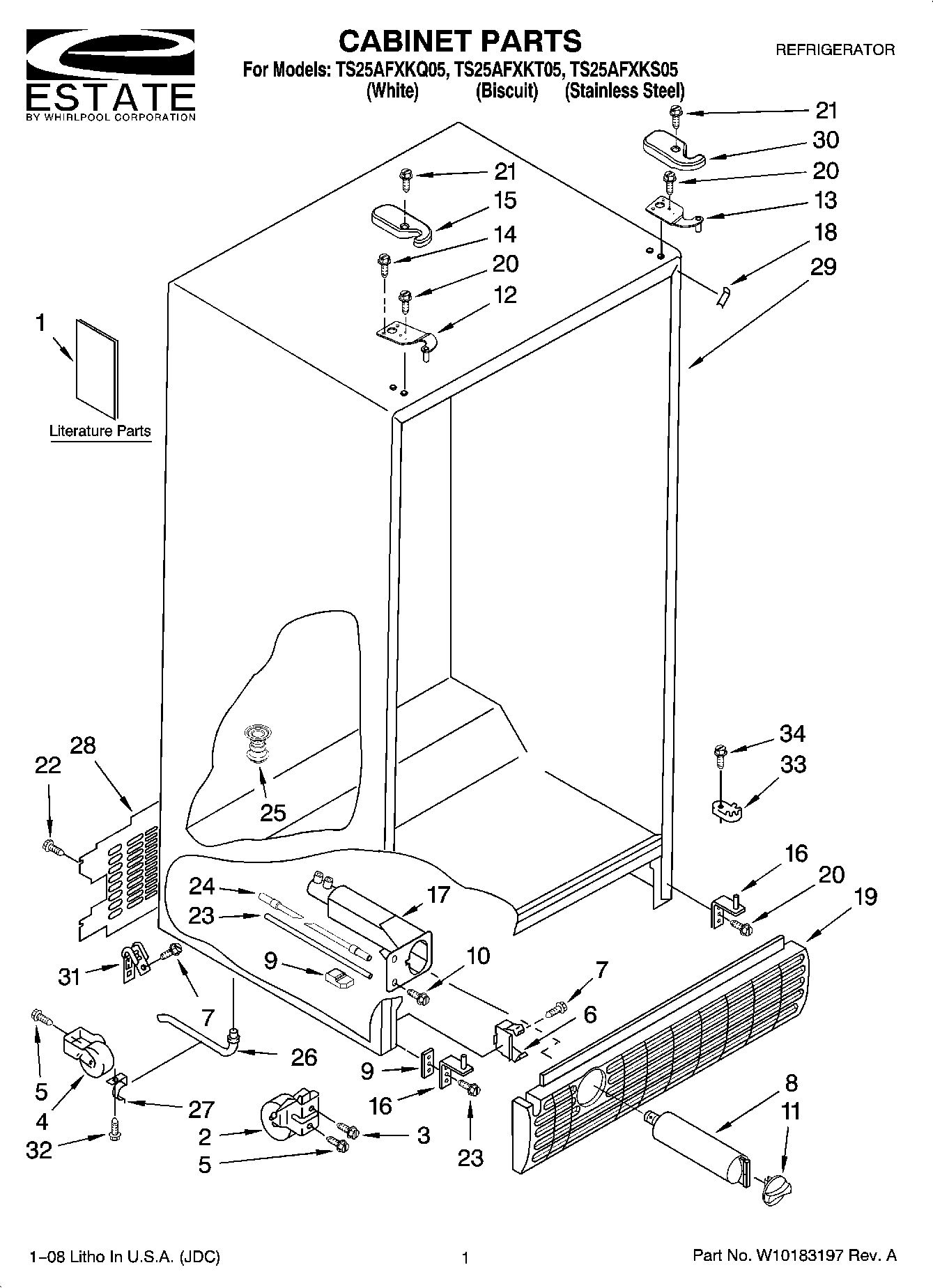

TS25AFXKQ05 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Service & Wiring Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
9	Block, Housing Support
10	WP489500 Whirlpool Refrigerator Screw
11	WP2186494W Whirlpool Water Filter Cap
11	WP2186494T Whirlpool Water Filter Cap
11	WP2186494B Whirlpool Refrigerator Filter Cap
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407W Whirlpool Refrigerator Cover
15	WP2203407B Whirlpool Refrigerator Cover
15	2203407T Whirlpool Refrigerator Cover
16	W10138965 Whirlpool Refrigerator Door Hinge
17	WP2186443 Whirlpool Water Filter Housing
18	Filler, Wrapper (Biscuit)
18	Filler, Wrapper (White)
18	Filler, Wrapper (Black)
19	Grille (Biscuit)
19	W10803964 Whirlpool Grille Assembly
20	WP489497 Whirlpool Screw
21	WP8281227 Whirlpool Screw
22	WP489464 Whirlpool Refrigerator Screw
23	WPW10350006 Whirlpool Refrigerator Water Tube
24	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
25	W11566763 Whirlpool Fitting
26	WP1108438 Whirlpool Refrigerator Extension
27	WP1108439 Whirlpool Refrigerator Clip
28	WP2188755 Whirlpool Rear Panel
29	Cabinet, (Not A Serviceable Part)
30	WP2203408W Whirlpool Refrigerator Cover
30	WP2203408B Whirlpool Refrigerator Cover
30	Hinge Cover (Biscuit)
31	549193 Whirlpool Refrigerator Power Clamp
33	WPW10329686 Whirlpool Door Cam Black
34	WP489483 Whirlpool Screw
