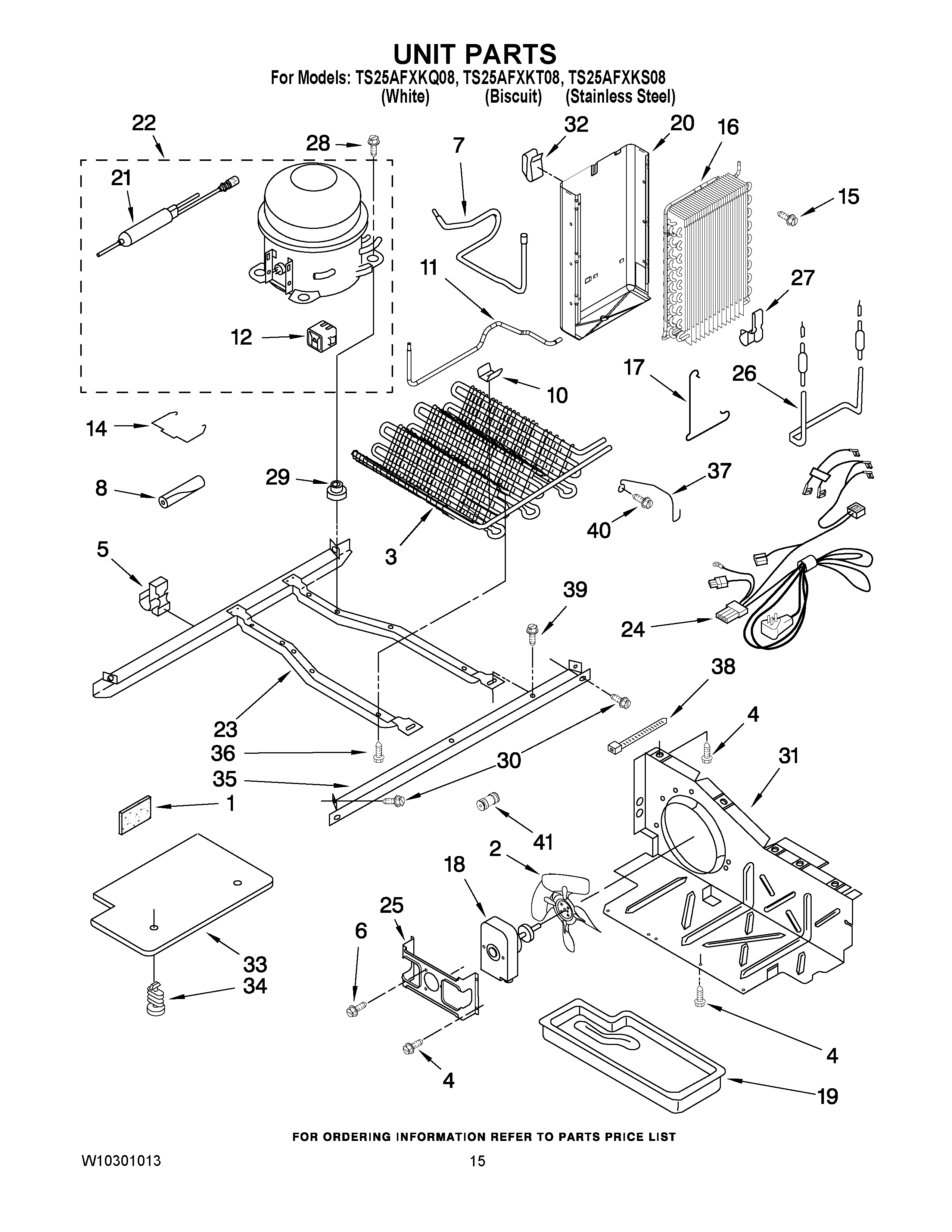

TS25AFXKQ08 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2205765 Whirlpool Refrigerator Tube
8	SLEEVE
10	W10683556 Whirlpool Refrigerator Clip
11	W10858105 Whirlpool Refrigerator Tube
12	WP2304885 Whirlpool Refrigerator Start Device
14	2223313 Whirlpool Clip
15	WP489478 Whirlpool Refrigerator Screw
16	WP2188823 Whirlpool Refrigerator Evaporator
17	Clamp
18	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	Heat Shield
21	WPW10143759 Whirlpool Dryer Filter
22	W10139460 Whirlpool Refrigerator Compressor
23	2304904 Whirlpool Frame Assembly
24	Unit, Harness
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323198 Whirlpool Refrigerator Heater
27	W11623163 Whirlpool Refrigerator Clip
29	876811 Whirlpool Grommet
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	Clip, Heat Shield
33	Unit Cover, Bottom
34	489396 Whirlpool Refrigerator Clip
35	2305374 Whirlpool Refrigerator Unit Rail
36	W11544659 Whirlpool Refrigerator Screw
37	Guard, Fan
38	WPW10339879 Whirlpool Wire Tie
39	WP489427 Whirlpool Refrigerator Screw
40	WPW10141625 Whirlpool Refrigerator Screw Assembly
41	WPW10334458 Whirlpool Refrigerator Connector
