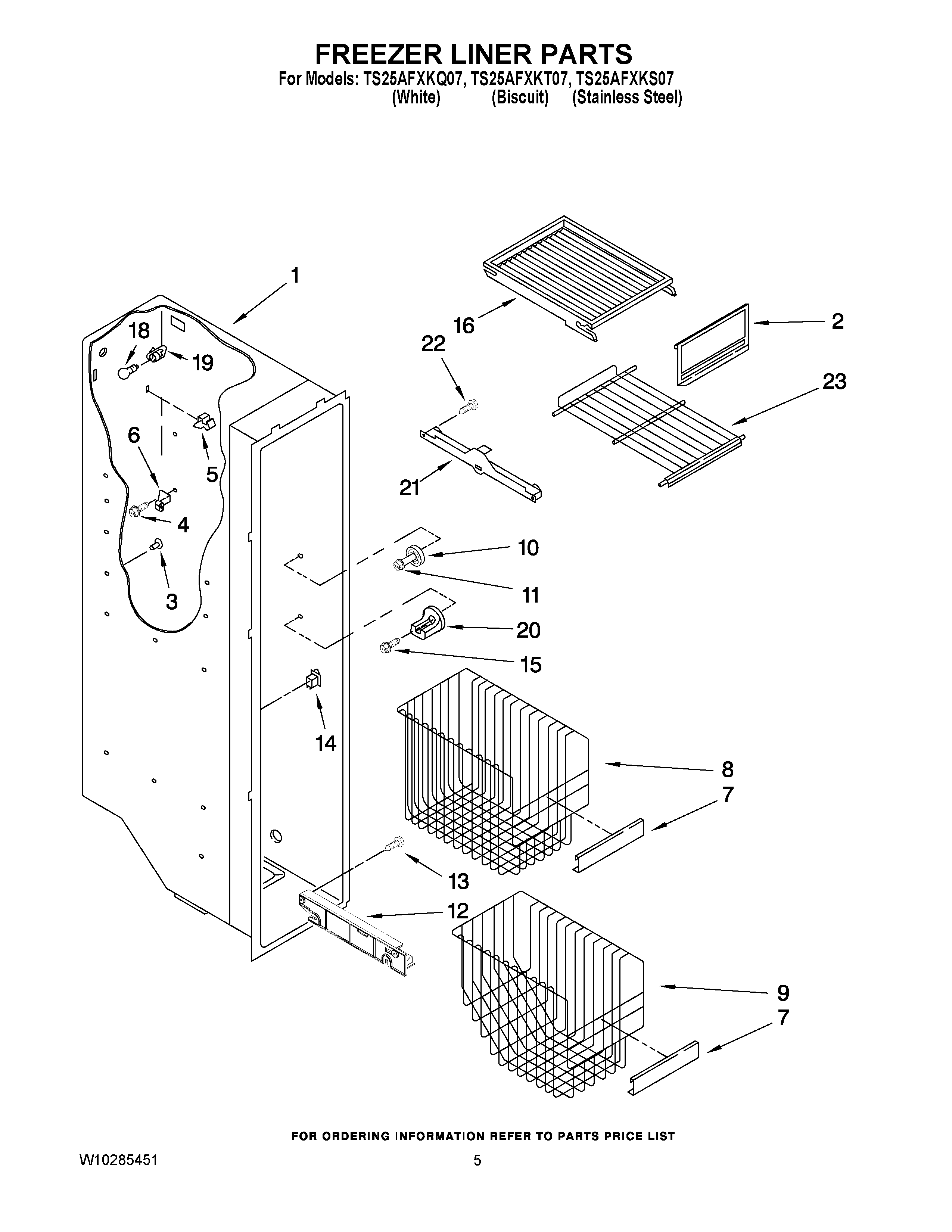

TS25AFXKS07 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2171713 Whirlpool Refrigerator Ice Door
3	Grommet
5	2215823 Whirlpool Refrigerator Clip
6	4388405 Whirlpool Refrigerator Shelf Stud
7	Trim, Basket
8	Basket, Tall
9	Basket, Sloped
10	WP2196483 Whirlpool Refrigerator Shelf Stud
11	WP3400806 Whirlpool Screw
12	Slide, Basket (Left Side)
12	WP2261449 Whirlpool Refrigerator Track
13	W10759522 Whirlpool Screw
14	W11457217 Whirlpool Refrigerator Rocker Switch Combination
15	W10142289 Whirlpool Air Conditioner Screw
16	Shelf, Top Compartment
18	RANGE ONLY 40W 120V APPL BULB
19	4387478 Whirlpool Refrigerator Light Socket
20	Stud, Rear
21	W10845583 Whirlpool Refrigerator Track
21	W10845585 Whirlpool Refrigerator Track
22	718257 Whirlpool Dishwasher Screw
23	WP2174267 Whirlpool Refrigerator Wire Shelf
