TS25AFXKS08 04 – FREEZER LINER PARTS

TS25AFXKS08 04 – FREEZER LINER PARTS

Written by

in

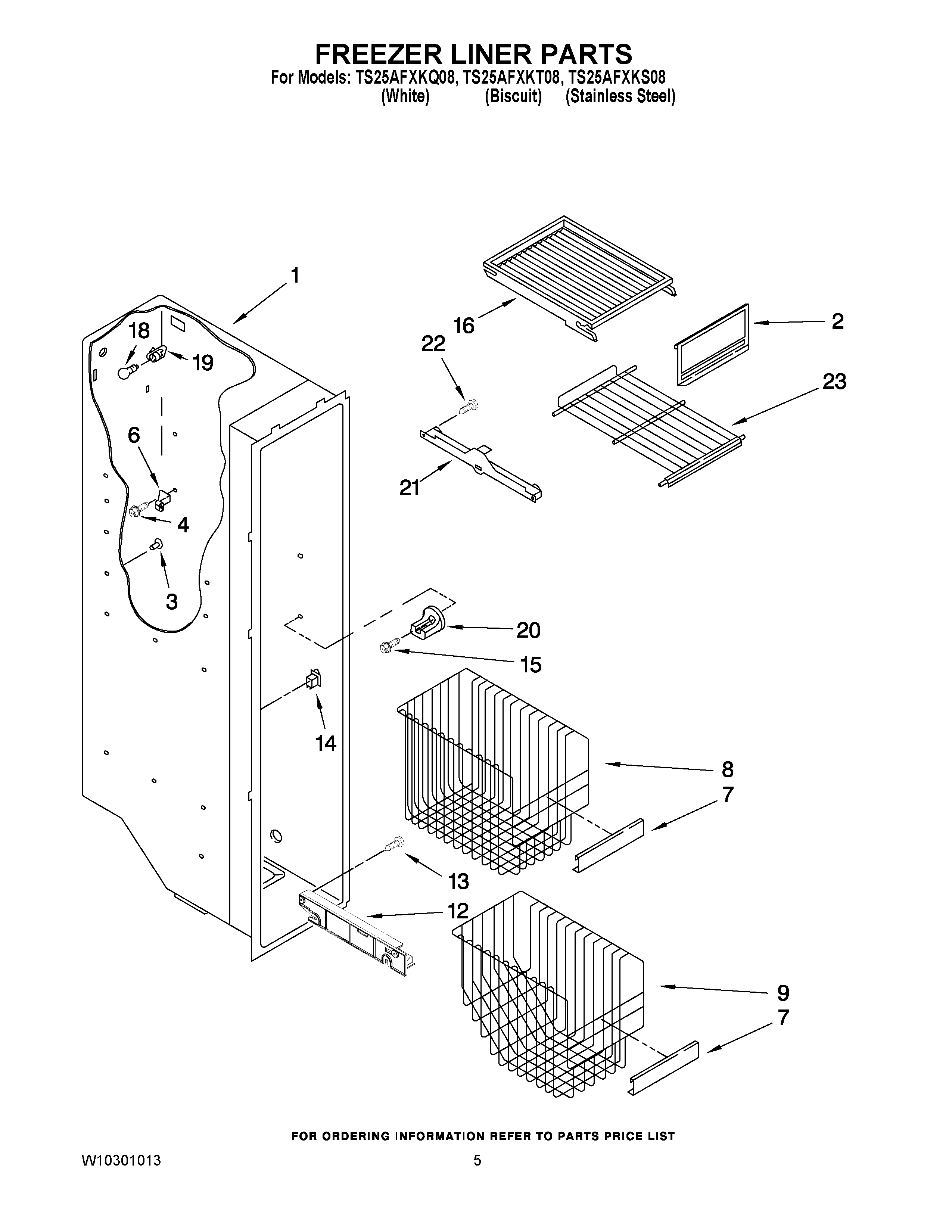

TS25AFXKS08 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2171713 Whirlpool Refrigerator Ice Door
3Grommet
64388405 Whirlpool Refrigerator Shelf Stud
7Trim, Basket
8Basket, Tall
9Basket, Sloped
12Slide, Basket (Left Side)
12WP2261449 Whirlpool Refrigerator Track
13W10759522 Whirlpool Screw
14W11457217 Whirlpool Refrigerator Rocker Switch Combination
15W10142289 Whirlpool Air Conditioner Screw
16Shelf, Top Compartment
18RANGE ONLY 40W 120V APPL BULB
194387478 Whirlpool Refrigerator Light Socket
20Stud, Rear
21W10845585 Whirlpool Refrigerator Track
21W10845583 Whirlpool Refrigerator Track
22718257 Whirlpool Dishwasher Screw
23WP2174267 Whirlpool Refrigerator Wire Shelf
