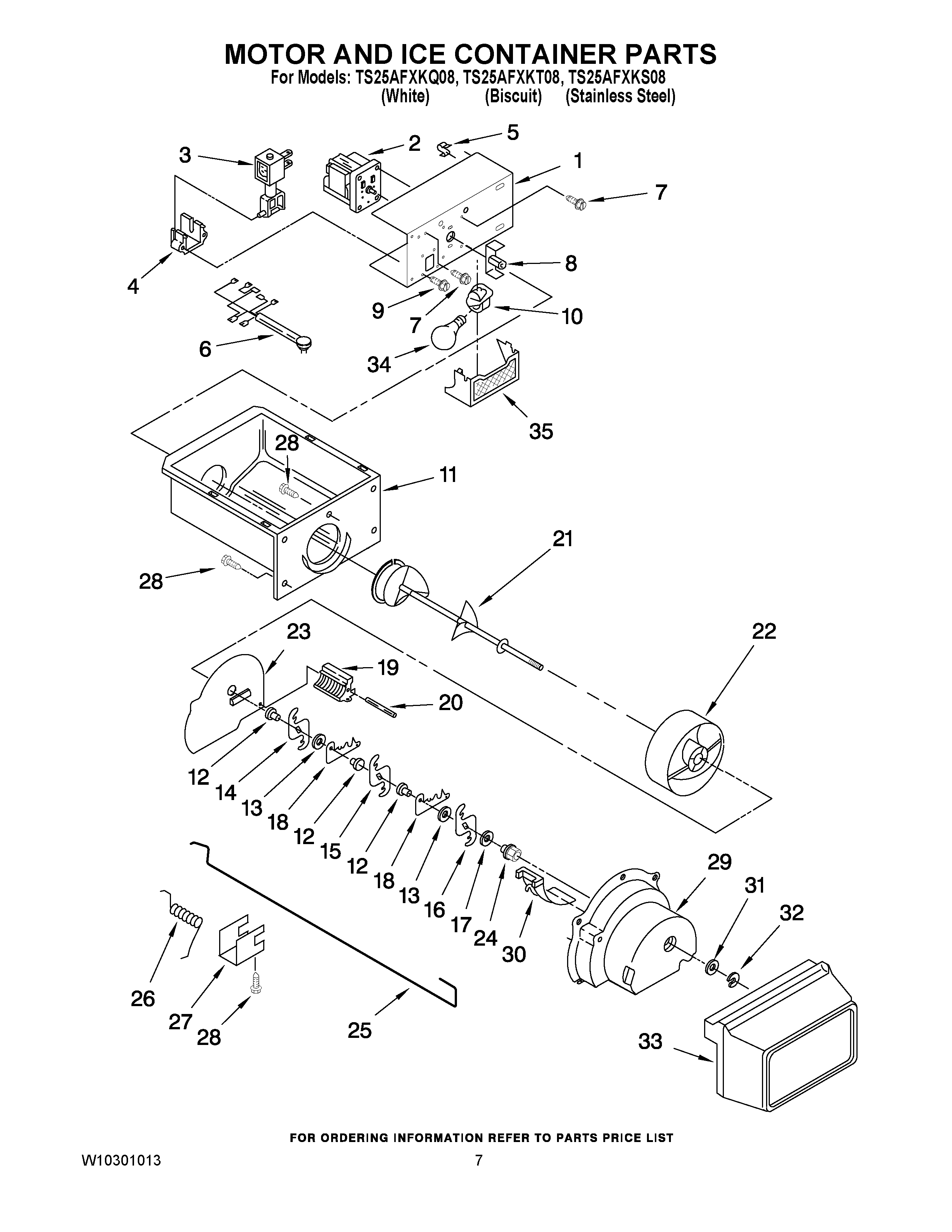

TS25AFXKS08 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	BRACKET, MOTOR
2	WPW10317991 Whirlpool Refrigerator Motor
3	WP2152713 Whirlpool Refrigerator Solenoid
4	W10850503 Whirlpool Refrigerator Guide
5	WP1115374 Whirlpool Refrigerator Clip
6	2311639 Whirlpool Refrigerator Dispenser Wiring Harness
7	WP489399 Whirlpool Refrigerator Screw
8	COUPLING AUGER MOTOR
9	WP489478 Whirlpool Refrigerator Screw
10	4387478 Whirlpool Refrigerator Light Socket
11	WPW10670845 Whirlpool Refrigerator Ice Container
12	WP1119005 Whirlpool Refrigerator Spacer
13	WP1119007 Whirlpool Refrigerator Spacer
14	W10278731 Whirlpool Refrigerator Blade
15	W10278732 Whirlpool Refrigerator Blade
16	W10278733 Whirlpool Refrigerator Blade
17	WP489235 Whirlpool Refrigerator Washer
18	BLADE, FIXED (2)
19	2157405 Whirlpool Refrigerator Blade Block
20	489229 Whirlpool Refrigerator Roll Pin
21	W10422851 Whirlpool Ice Maker Bucket Auger
22	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
23	W10852691 Whirlpool Refrigerator Baffle
24	WP1119018 Whirlpool Refrigerator Bearing
25	W11596045 Whirlpool Refrigerator Control Arm
26	1119020 Whirlpool Refrigerator Spring
27	1119021 Whirlpool Refrigerator Clip
28	WP488787 Whirlpool Refrigerator Screw
29	WPW10185018 Whirlpool Refrigerator Housing
30	WP1119017 Whirlpool Refrigerator Deflector
31	489234 Whirlpool Refrigerator Washer
32	WP489236 Whirlpool Refrigerator Ring
33	Front Cover, Ice Container
34	RANGE ONLY 40W 120V APPL BULB
35	WP2171706 Whirlpool Refrigerator Light Lens
100	WPW10312300 Whirlpool Refrigerator Ice Container
