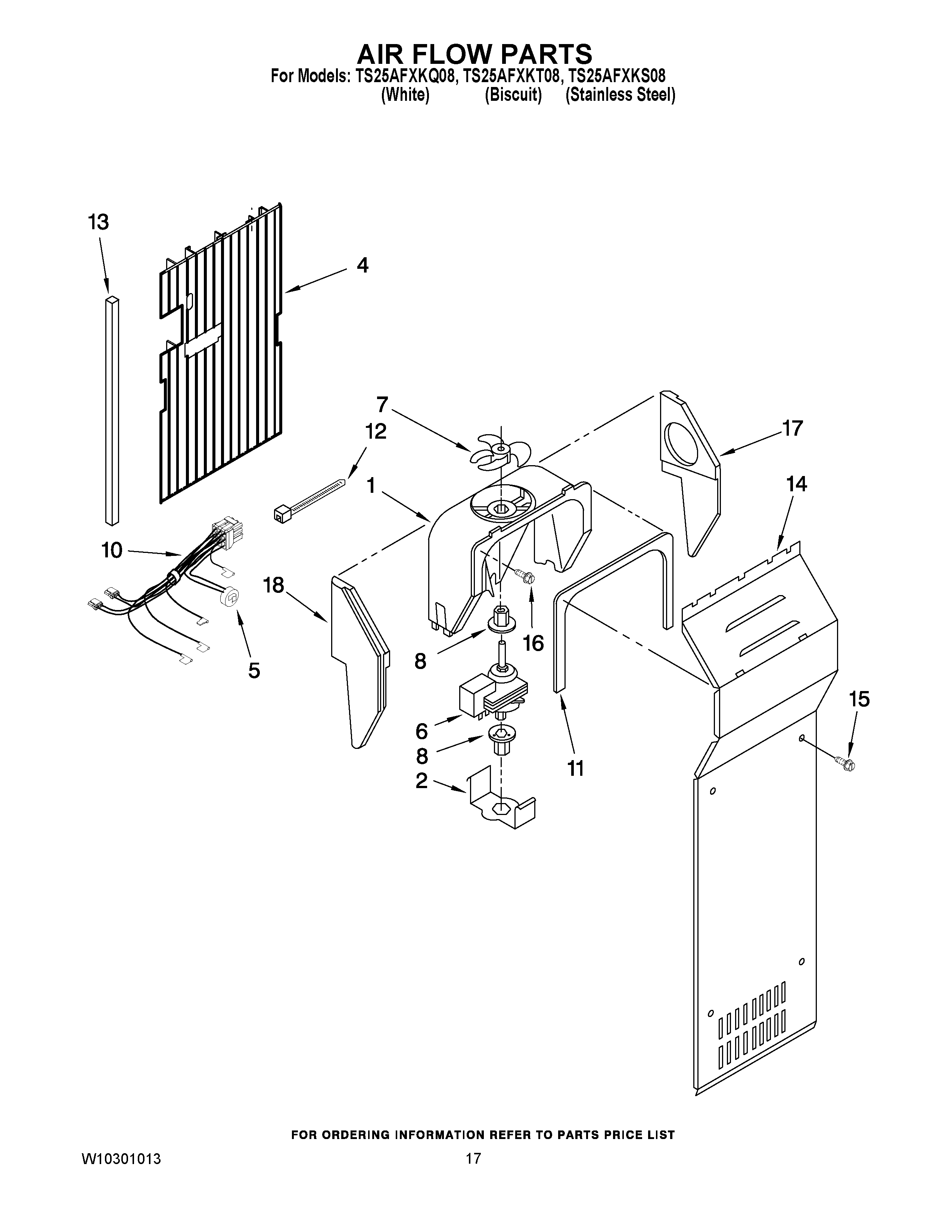

TS25AFXKS08 10 – AIR FLOW PARTS

TS25AFXKS08 10 – AIR FLOW PARTS

Written by

in

TS25AFXKS08 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
4W10756902 Whirlpool Refrigerator Air Duct
5WPW10225581 Whirlpool Refrigerator Defrost Thermostat
64389144 Whirlpool Refrigerator Evaporator Fan Motor
7WP2169142 Whirlpool Fan Blade
8WP2176759 Whirlpool Refrigerator Grommet
10W11084324 Whirlpool Refrigerator Wire Harness
11WP2155789 Whirlpool Refrigerator Gasket
12WPW10339879 Whirlpool Wire Tie
13WP2304241 Whirlpool Refrigerator Gasket
14Cover, Evaporator
154389654 Whirlpool Screw
16WP489478 Whirlpool Refrigerator Screw
174388358 Whirlpool Refrigerator Support Bracket
