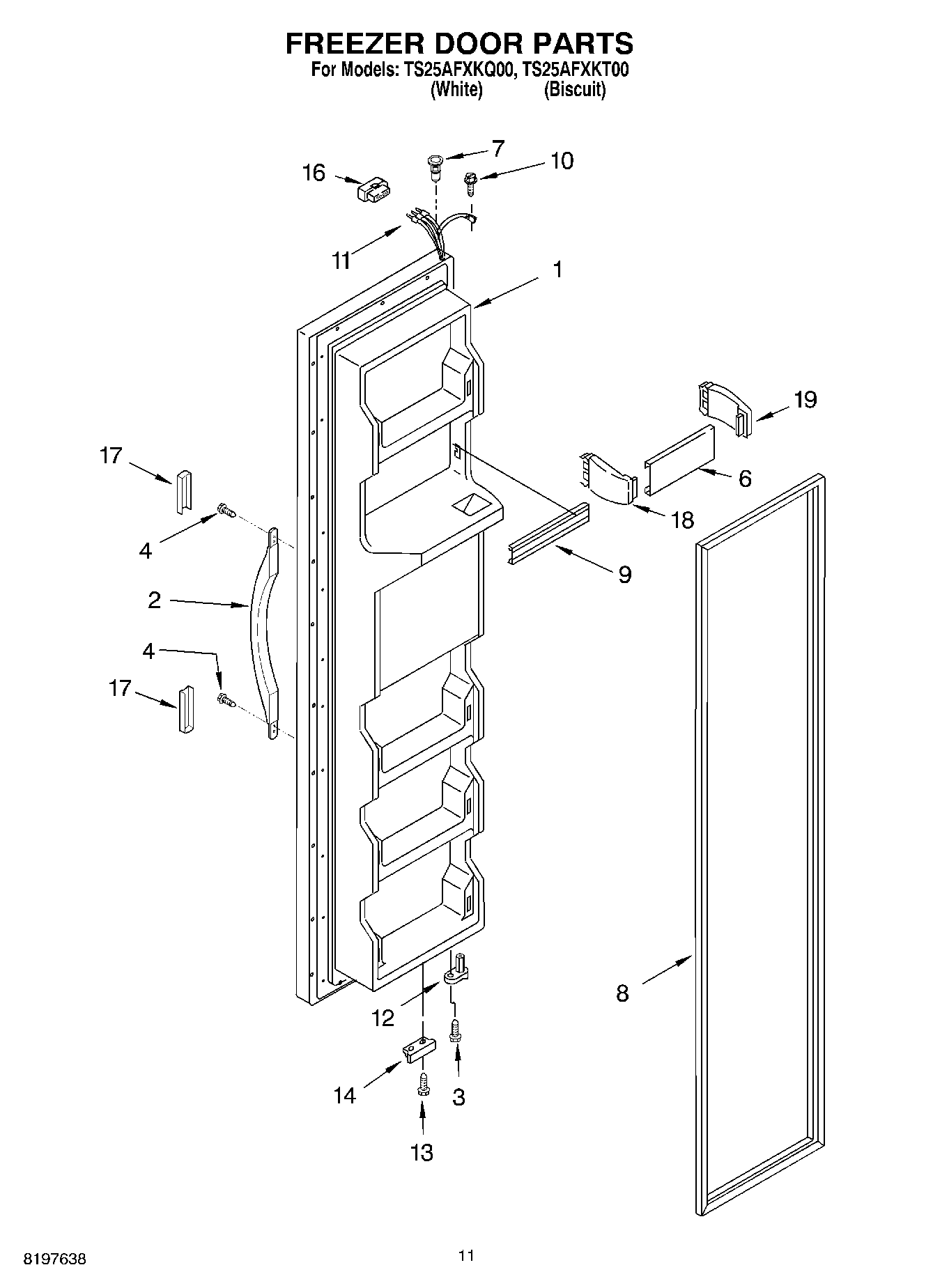

TS25AFXKT00 07 – FREEZER DOOR

TS25AFXKT00 07 – FREEZER DOOR

Written by

in

TS25AFXKT00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
2Handle, Center (Biscuit)
2Handle, Center (White)
3WP3400012 Whirlpool Refrigerator Screw
4WP489491 Whirlpool Refrigerator Screw
6Trivet, Shelf (4)
7WP2182181 Whirlpool Refrigerator Thimble
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
16WP2154473 Whirlpool Refrigerator Connector
17Cover, Trim (Biscuit)
17WP2193353W Whirlpool Refrigerator Trim Handle
18WP2195917K Whirlpool Refrigerator Endcap
19ENDCAP
