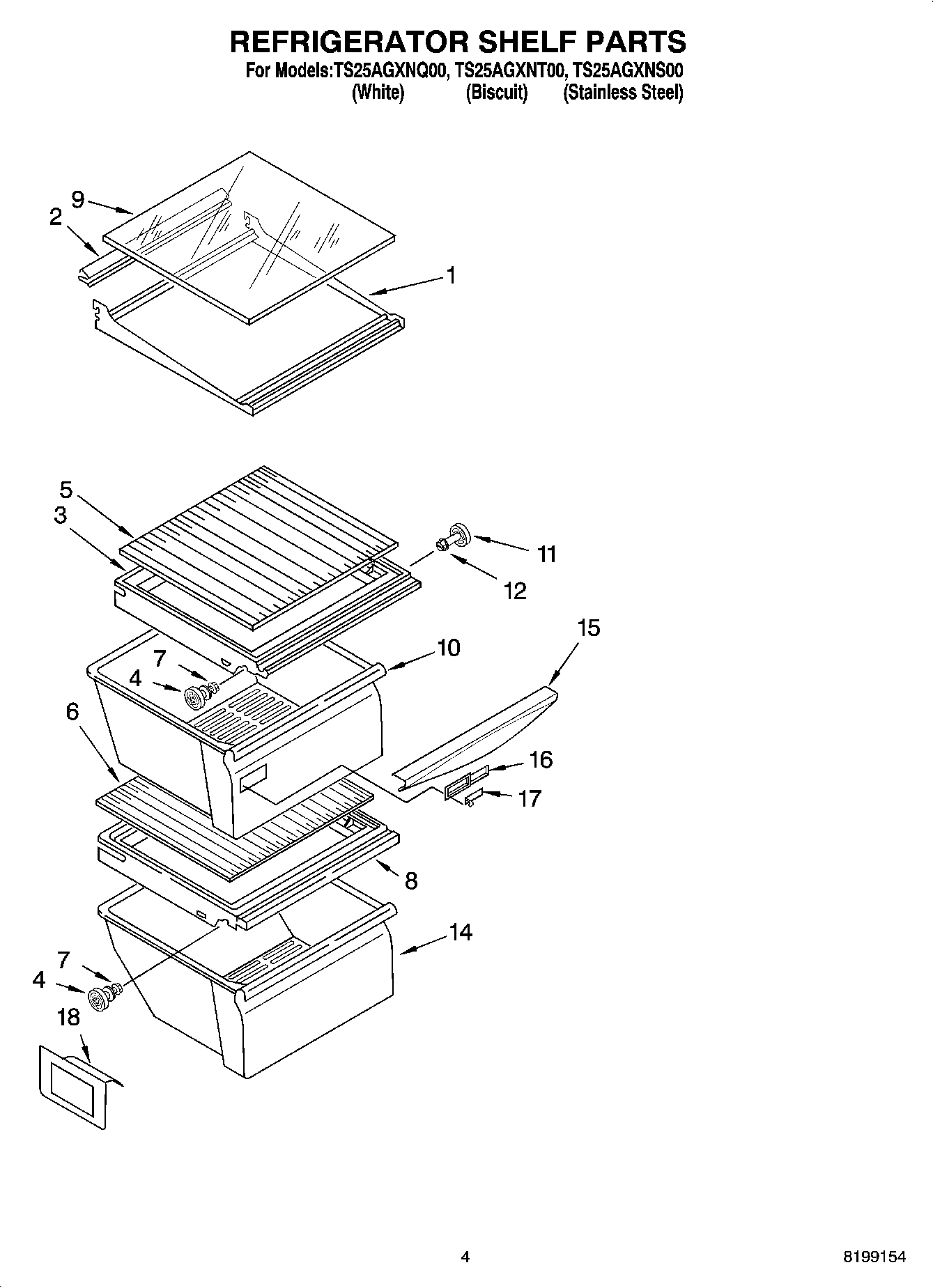

TS25AGXNQ00 03 – REFRIGERATOR SHELF PARTS

TS25AGXNQ00 03 – REFRIGERATOR SHELF PARTS

Written by

in

TS25AGXNQ00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf, Cantilever (3)
2Retainer
3W10508993 Whirlpool Refrigerator Cover Pan
4W11223328 Whirlpool Refrigerator Shelf Stud
5W10864399 Whirlpool Glass Shelf
7WP3-24004-109 Whirlpool Refrigerator Screw
9Glass (3)
10PAN-CRISPR
11WP2196483 Whirlpool Refrigerator Shelf Stud
12WP3400806 Whirlpool Screw
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
15WP2179234 Whirlpool Refrigerator Pan Trim
16WP2179343 Whirlpool Refrigerator Control Body
17WP2179342 Whirlpool Refrigerator Slide
182179350 Whirlpool Refrigerator Deflector
