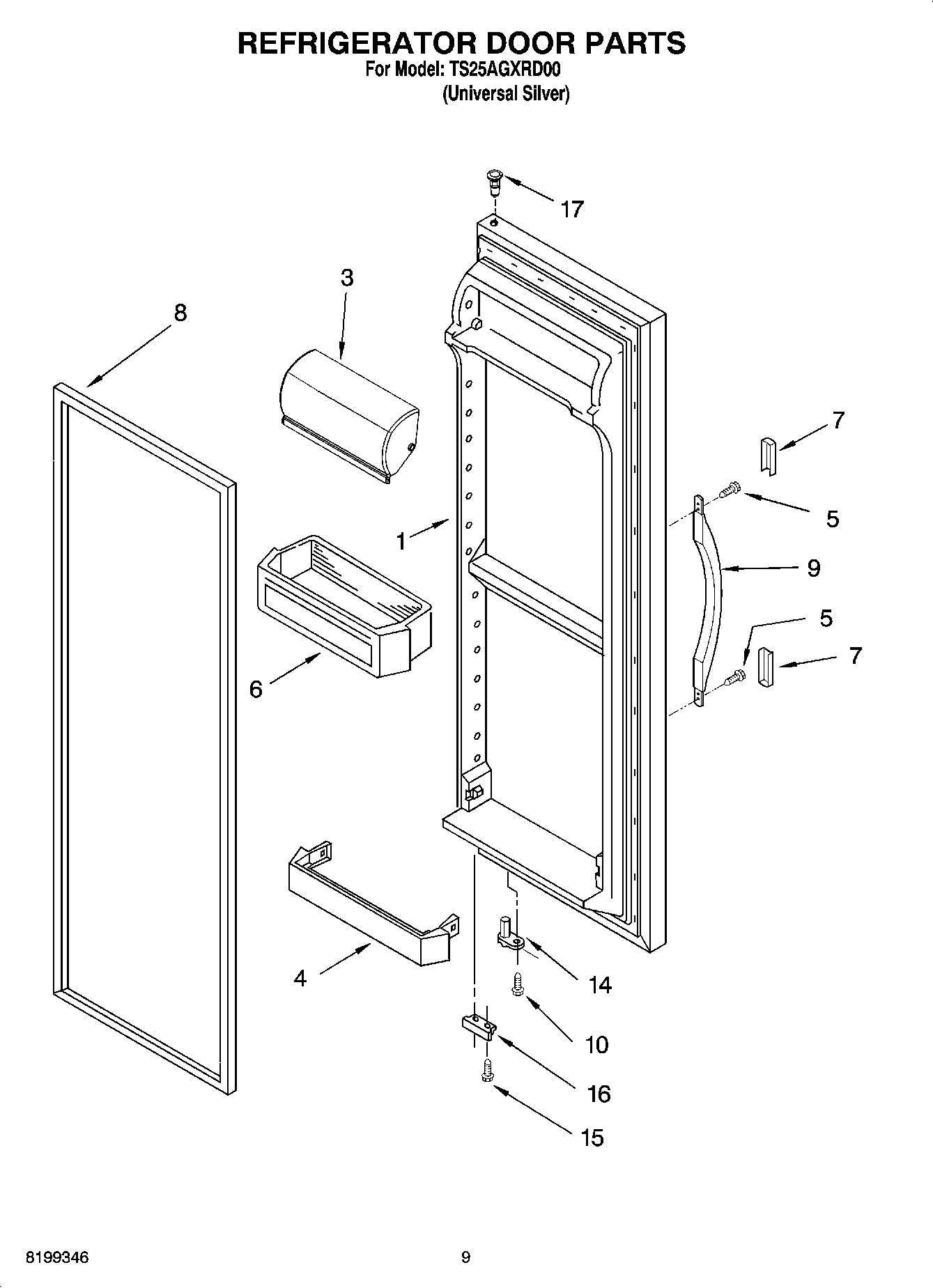

TS25AGXRD00 06 – REFRIGERATOR DOOR PARTS

TS25AGXRD00 06 – REFRIGERATOR DOOR PARTS

Written by

in

TS25AGXRD00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Universal Silver)
3WP2256101 Whirlpool Dairy Door
4WP2177962K Whirlpool Refrigerator Door Trim
5WP489491 Whirlpool Refrigerator Screw
6WP2187172 Whirlpool Refrigerator Door Shelf Bin
7Cover, Trim (Black)
82159083 Whirlpool Gasket Door
9WP2186649B Whirlpool Refrigerator Handle
10WP3400012 Whirlpool Refrigerator Screw
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
17Thimble, Top (For Stainless Steel Models)
