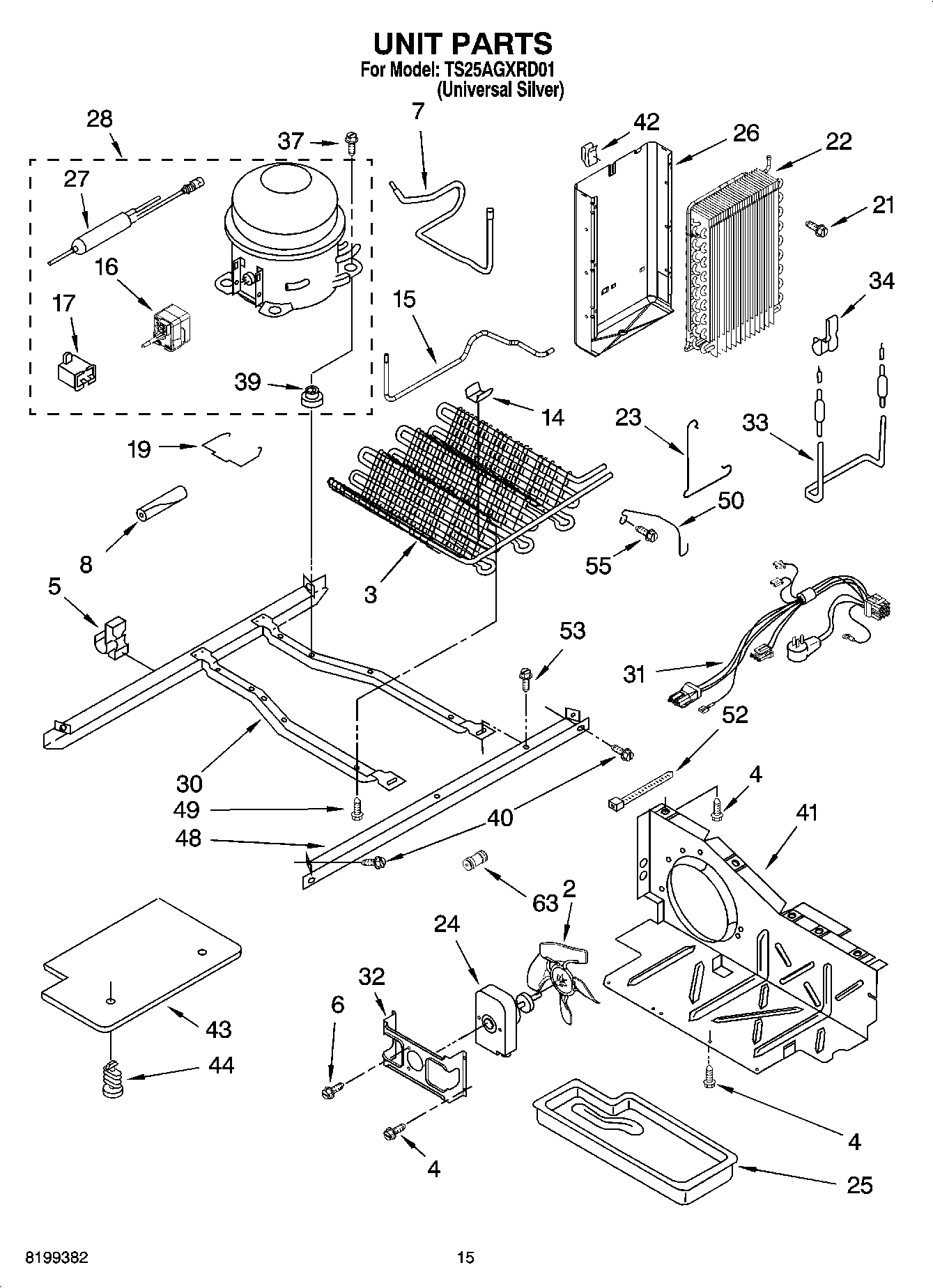

TS25AGXRD01 09 – UNIT PARTS

TS25AGXRD01 09 – UNIT PARTS

Written by

in

TS25AGXRD01 09 – UNIT PARTS

Products

PositionProduct
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
6WP8533993 Whirlpool Refrigerator Screw
72313230 Whirlpool Tube
8SLEEVE
14W10683556 Whirlpool Refrigerator Clip
152261599 Whirlpool Refrigerator Tube
16WP2313162 Whirlpool Refrigerator Start Device
17WP65889-4 Whirlpool Refrigerator Capacitor
192255009 Whirlpool Retainer
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
31Unit, Harness
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
482305374 Whirlpool Refrigerator Unit Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WPW10141625 Whirlpool Refrigerator Screw Assembly
63WP4373559 Whirlpool Fitting
63and Optional Parts Not Included
63FOLLOWING PARTS NOT ILLUSTRATED
63VALVE, ACCESS (5/8“)
63978026 Whirlpool Refrigerator Primary Valve
63VALVE, ACCESS (1/2“)
63WP978025 Whirlpool Refrigerator Valve
63978030 Whirlpool Refrigerator Valve
63876764 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63REFRIGERANT CHARGE 5.0 oz. (R-134A)
