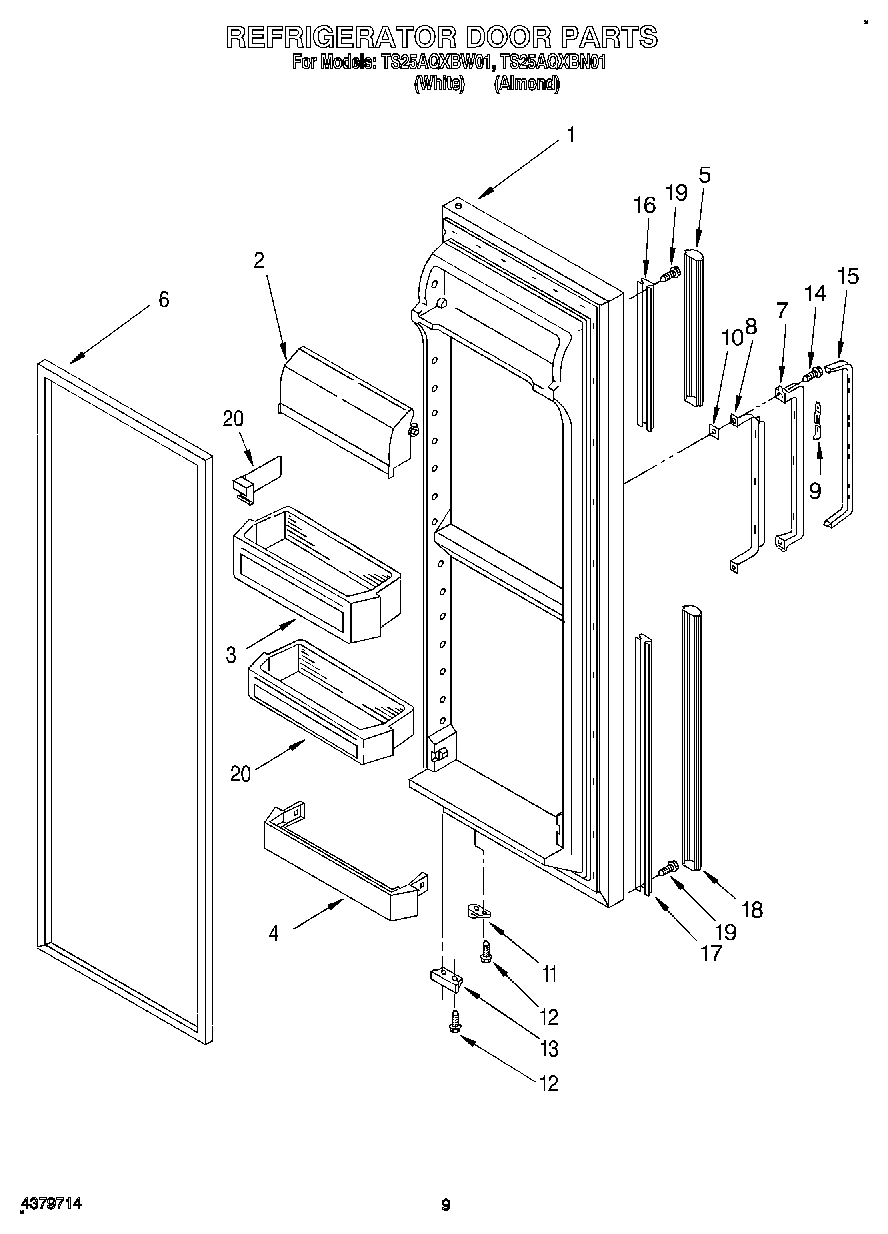

TS25AQXBN01 06 – REFRIGERATOR DOOR

TS25AQXBN01 06 – REFRIGERATOR DOOR

Written by

in

TS25AQXBN01 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.6) (White)
1Refrigerator Door (Includes No.6) (Almond)
2WP2256101 Whirlpool Dairy Door
3Shelf Bin (2)
4WP2177962K Whirlpool Refrigerator Door Trim
5Extension (Top) (Almond)
5Extension (Top) (White)
62159075 Whirlpool Door Gasket Seal
7Handle, Center
7Handle, Center (Almond)
8Reinforcement, Handle
9Clip, Handle
10Shim
114318165 Whirlpool Refrigerator Door Closure Cam Kit
12WP999367 Whirlpool Refrigerator Screw
13Bracket, Door Stop
15Insert, Handle
16Retainer (Top)
17Retainer (Bottom)
18Extension, Bottom (Almond)
18Extension, Bottom
19WP489478 Whirlpool Refrigerator Screw
20Shelf Bin
