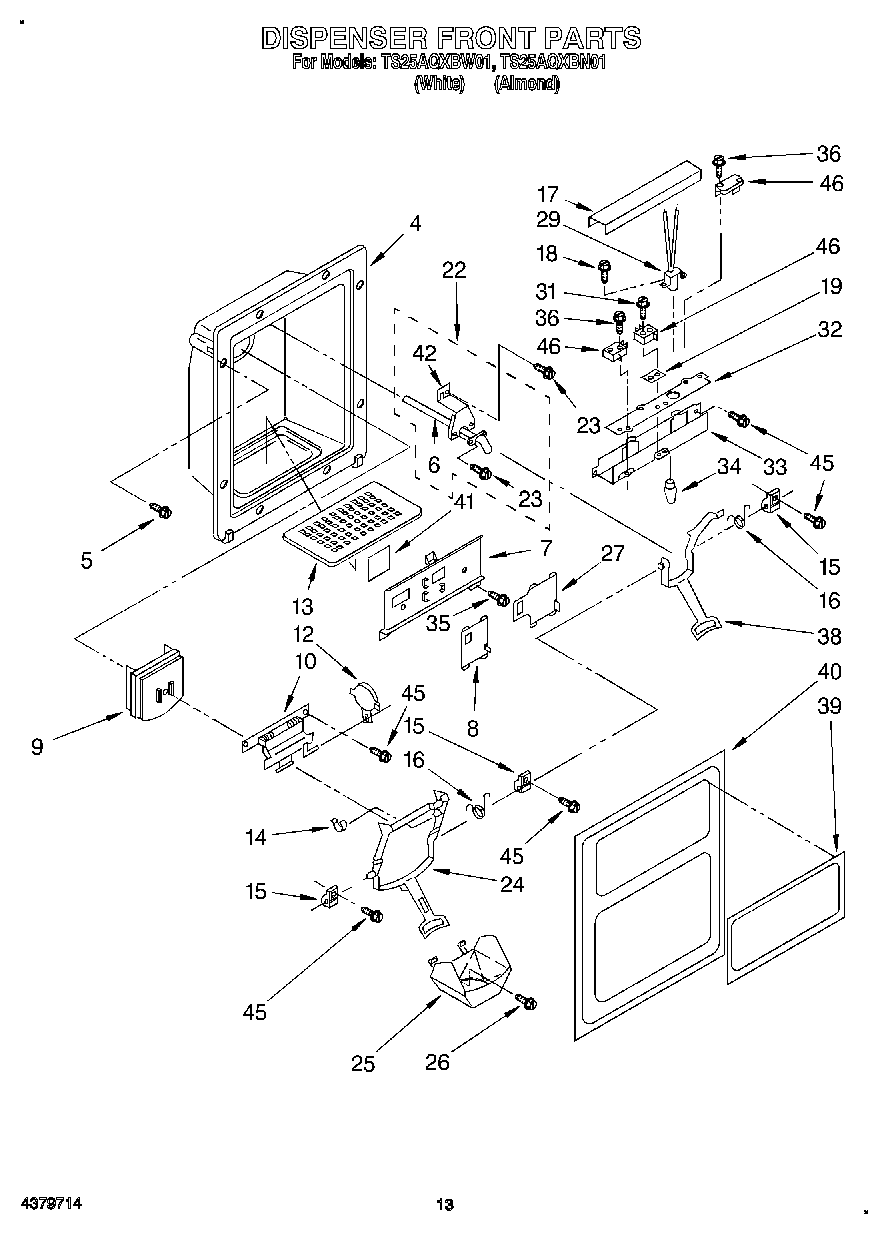

TS25AQXBN01 08 – DISPENSER FRONT
Written by
in
TS25AQXBN01 08 – DISPENSER FRONT
Products
Position
Product
4
Housing, Dispenser (Not a Serviceable Part)
5
W11693756 Whirlpool Screw Assembly
6
Tube, Water (See Item No.22)
7
Frame, Slides
7
Frame, Slides (Almond)
8
Slide, Cube/Crush Switch
8
Slide, Cube/Crush Switch (Almond)
9
WP2180353 Whirlpool Dispenser Door
10
Door Mechanism Assembly
12
WP1120581 Whirlpool Refrigerator Mechanism
13
Grille, Overflow (Almond)
13
Grille, Overflow (White)
14
Clip, Bearing (2)
15
Bearing, Lever (3)
16
Spring, Lever (2)
17
Shield, Wiring
18
WP489128 Whirlpool Refrigerator Screw
19
Spacer, Switch (2)
22
WP4388152 Whirlpool Refrigerator Fitting
23
WP965173 Whirlpool Dishwasher Screw
24
Lever Assembly, Ice Dispenser (White)
24
Lever, Ice Dispenser (Almond)
25
Guide, Ice (Almond)
25
Guide, Ice
26
Screw
27
Slide, Light Switch (Almond)
27
Slide, Light Switch
29
Lamp Holder
31
Screw, 4-40 x 1
32
Insulator, Control Bracket
33
Bracket, Control
34
WP22002263 Whirlpool Dryer 10W Light Bulb
35
WP489069 Whirlpool Compactor Screw
36
Screw,
38
Lever Assembly, Water Dispenser (White)
38
Lever, Water Dispenser (Almond)
39
Plaque, Front Cover (Almond)
39
Plaque, Front Cover (White)
40
Front Cover, Housing (Includes Item 39) (White)
40
Front Cover, Housing (Includes Item 39) (Almond
41
Heat Shield, Frame
42
Bracket, Water
45
WP3400906 Whirlpool Refrigerator Screw
46
WP2162361 Whirlpool Switch
←
