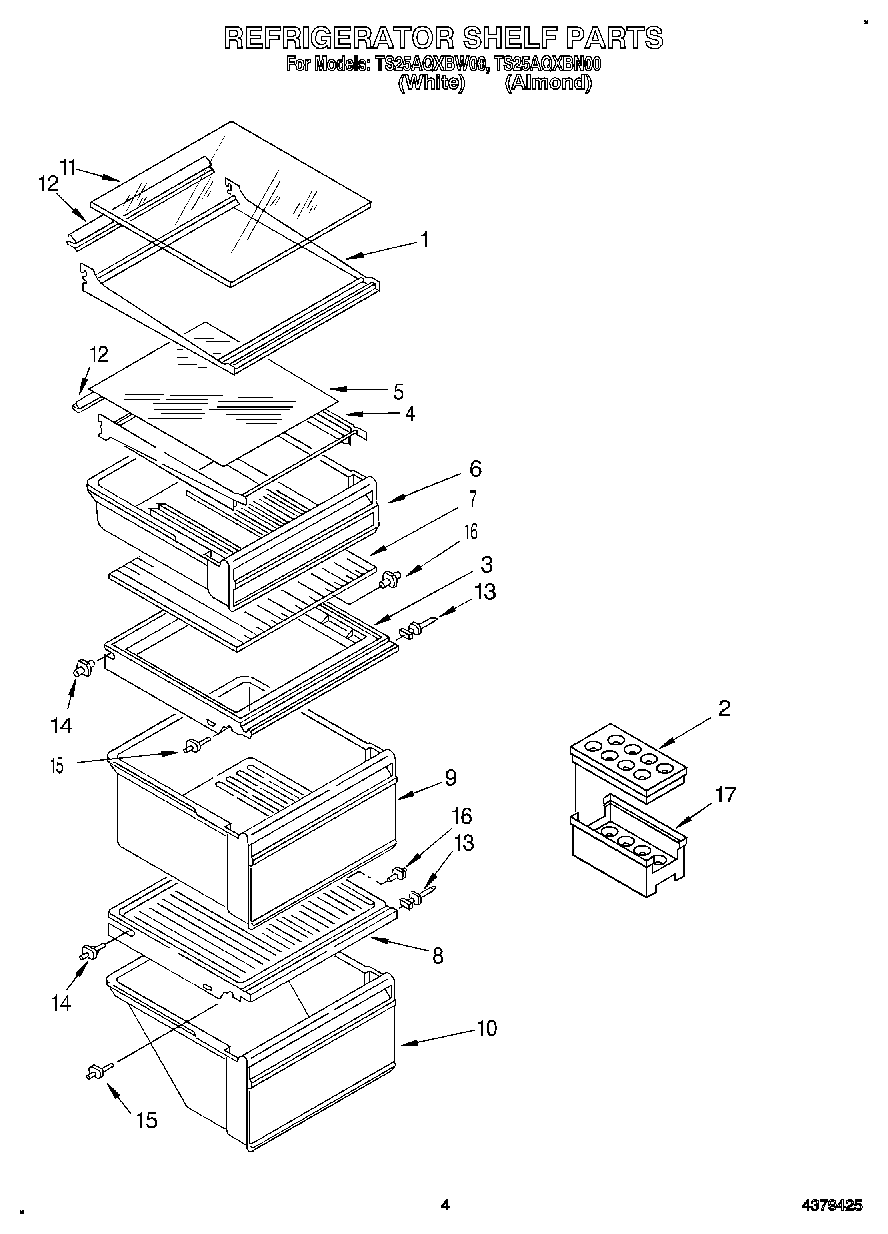

TS25AQXBW00 03 – REFRIGERATOR SHELF

TS25AQXBW00 03 – REFRIGERATOR SHELF

Written by

in

TS25AQXBW00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf, Cantilever (3)
2Egg Container, Top
3WP1126289 Whirlpool Refrigerator Cover
4Shelf, Cantilever (Snack Bin)
5Glass (Snack Bin)
6Snack Bin
7Glass, Crisper Cover
8WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
9WP2148279 Whirlpool Refrigerator Crisper Pan
10Pan, Meat
11Glass (3)
12Retainer
14Stud (2)
15WP2149540 Whirlpool Shelf Support
164388538 Whirlpool Refrigerator Stud Shelf Kit (White)
17Egg Container, Bottom
