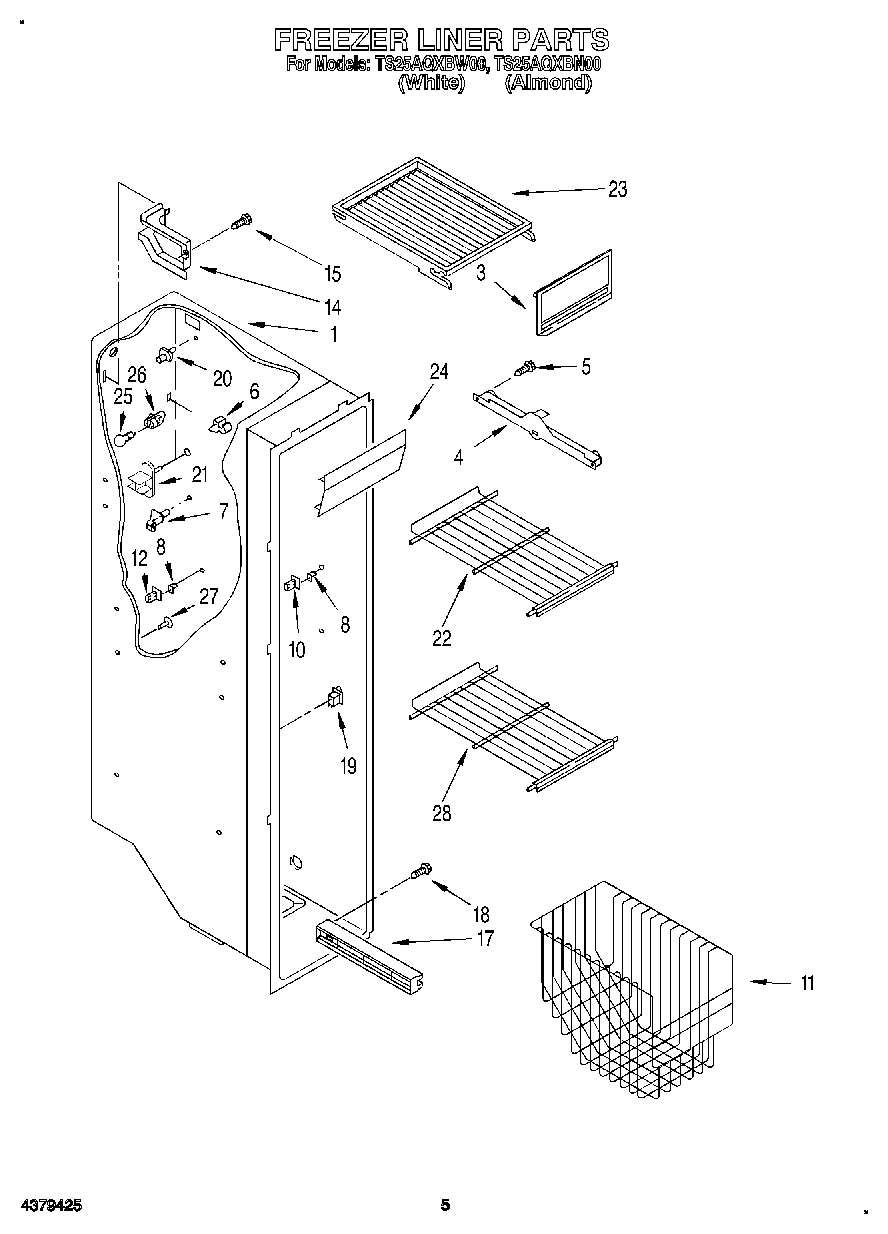

TS25AQXBW00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	Door, Ice Compartment
4	W10845585 Whirlpool Refrigerator Track
4	W10845583 Whirlpool Refrigerator Track
5	718257 Whirlpool Dishwasher Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
10	Stud, Front R.S.
11	Basket, Slope
12	Stud, Rear R.S.
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
17	Shelf Track (Right Side (4))
17	Shelf Track (Left Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
21	Stud, Shelf (4)
22	Shelf
23	Shelf, Top Compartment
24	Light Lens
25	RANGE ONLY 40W 120V APPL BULB
26	4387478 Whirlpool Refrigerator Light Socket
27	Grommet (8)
28	Shelf (2)
