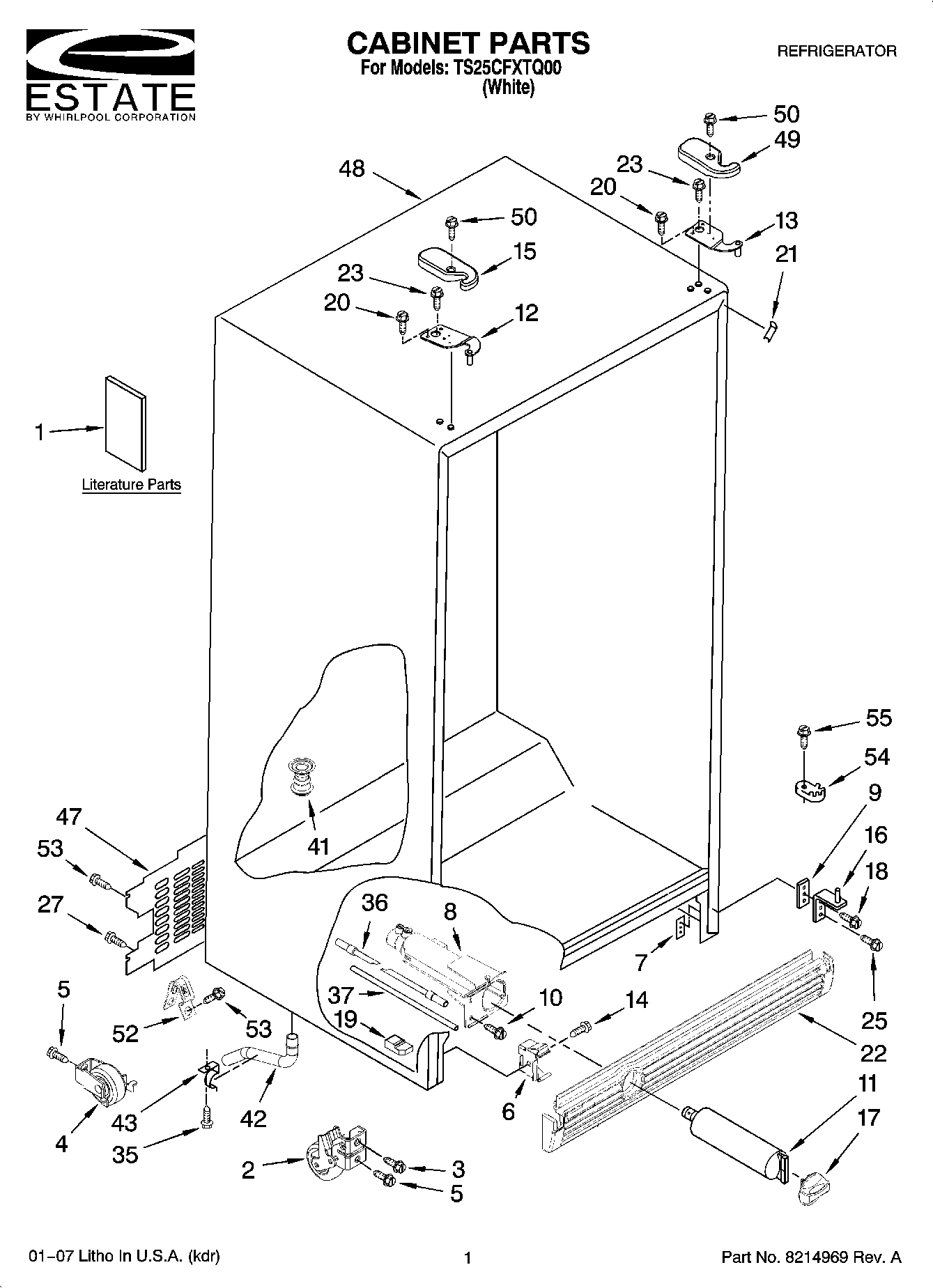

TS25CFXTQ00 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Use & Care Guide
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	Housing, Water Filter
9	WP2209697 Whirlpool Refrigerator Shim
10	WP489500 Whirlpool Refrigerator Screw
11	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407W Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WP2186494W Whirlpool Water Filter Cap
18	WP489497 Whirlpool Screw
19	Block, Housing Support
20	W10853301 Whirlpool Refrigerator Screw
21	WPW10283959 Whirlpool Refrigerator Filler
22	W10803964 Whirlpool Grille Assembly
25	W10856122 Whirlpool Refrigerator Screw
27	WP488488 Whirlpool Refrigerator Screw
35	WP489464 Whirlpool Refrigerator Screw
36	WP2304697 Whirlpool Refrigerator Water Tube
37	WPW10350006 Whirlpool Refrigerator Water Tube
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	WP2188755 Whirlpool Rear Panel
48	Cabinet, (Not A Serviceable Part)
49	WP2203408W Whirlpool Refrigerator Cover
50	WP8281227 Whirlpool Screw
52	549193 Whirlpool Refrigerator Power Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
