TS25CFXTQ02 07 – FREEZER DOOR PARTS

TS25CFXTQ02 07 – FREEZER DOOR PARTS

Written by

in

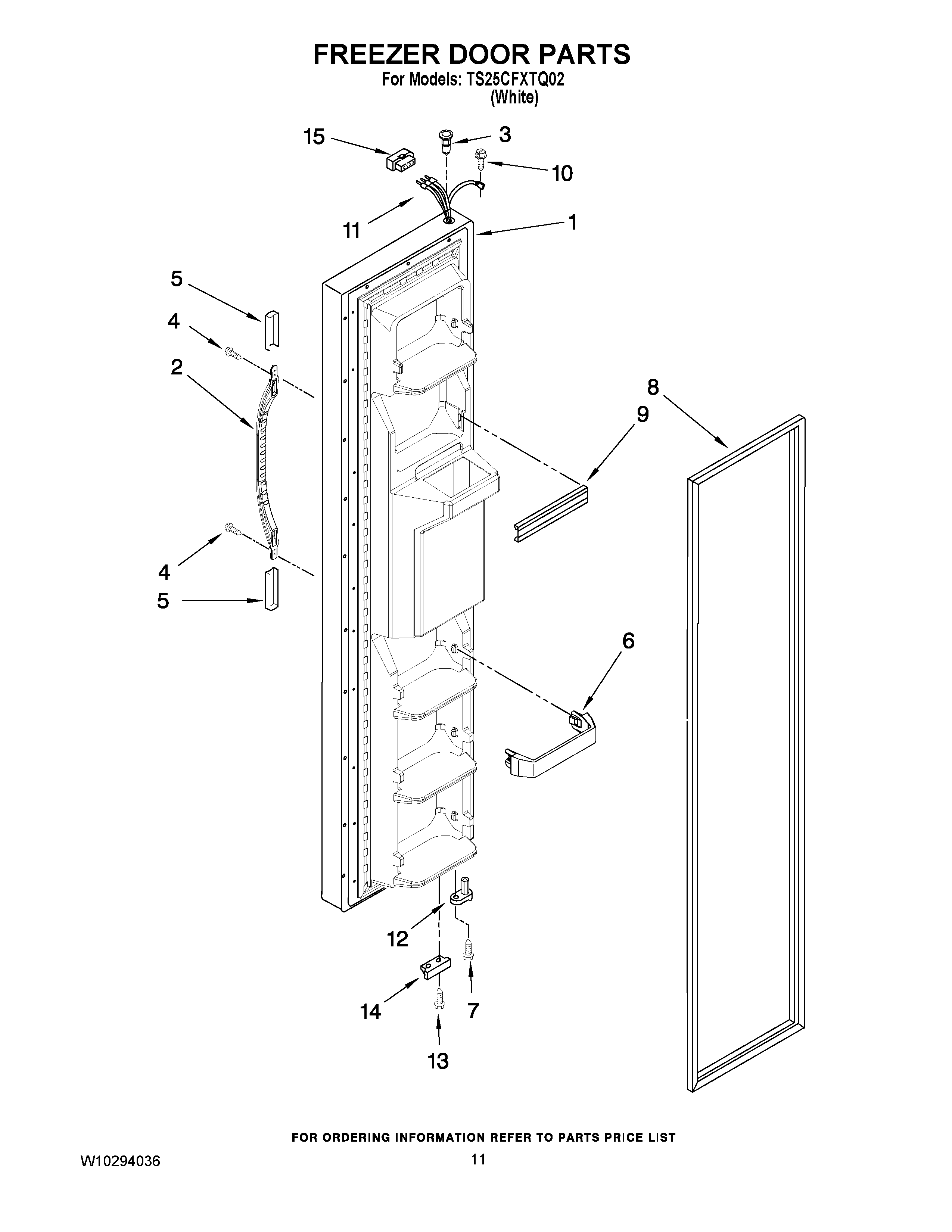

TS25CFXTQ02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
2Handle (White)
3WP2182181 Whirlpool Refrigerator Thimble
4WP489491 Whirlpool Refrigerator Screw
5Trim, Handle (White)
6WP2171157 Whirlpool Shelf Trim
7WP3400012 Whirlpool Refrigerator Screw
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14W10185566 Whirlpool Bracket
15WP2154473 Whirlpool Refrigerator Connector
