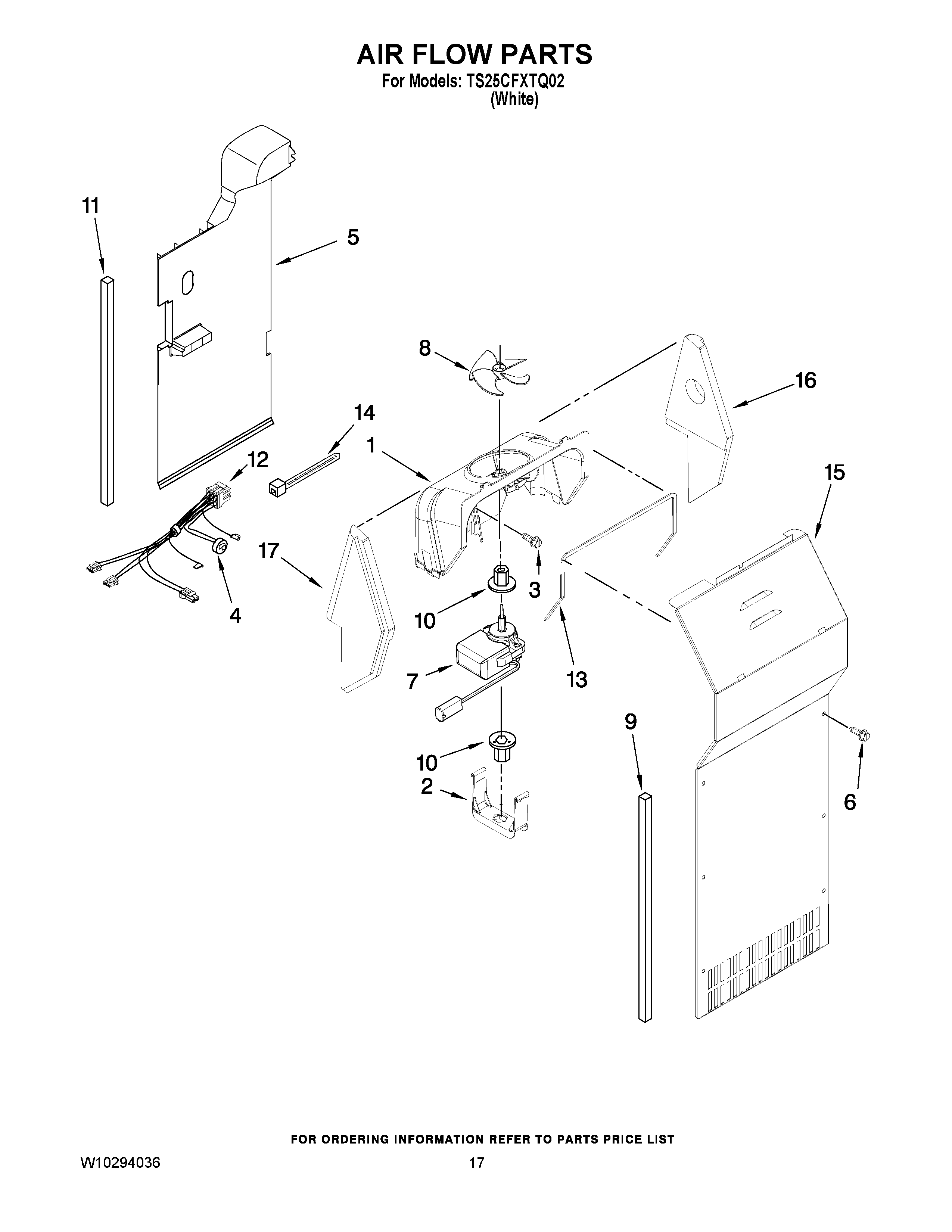

TS25CFXTQ02 10 – AIR FLOW PARTS

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	WP489478 Whirlpool Refrigerator Screw
4	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5	W10756902 Whirlpool Refrigerator Air Duct
6	4389654 Whirlpool Screw
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
11	4388500 Whirlpool Refrigerator Gasket
12	W11234406 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
15	Cover, Evaporator
16	4388358 Whirlpool Refrigerator Support Bracket
