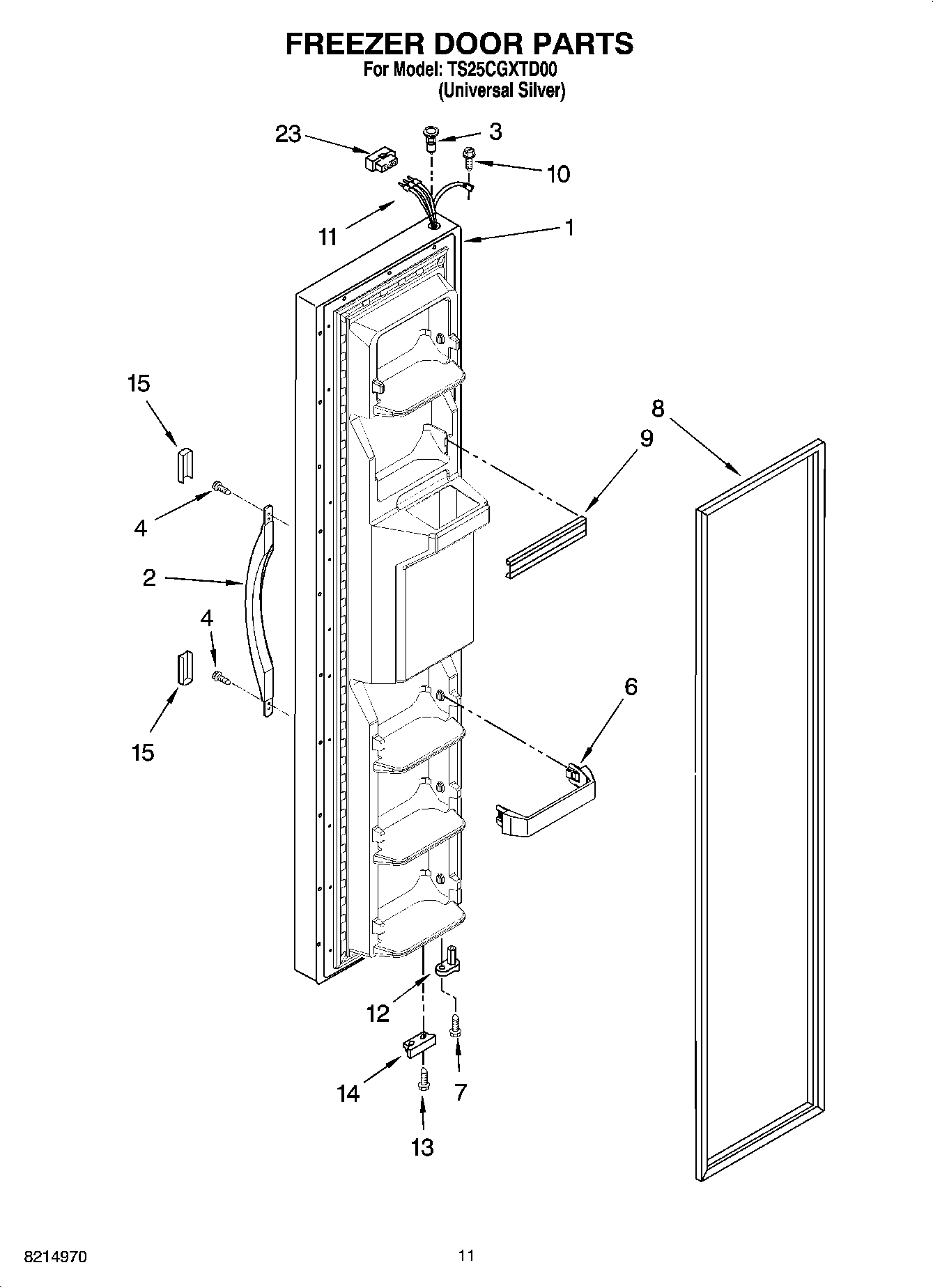

TS25CGXTD00 07 – FREEZER DOOR PARTS

TS25CGXTD00 07 – FREEZER DOOR PARTS

Written by

in

TS25CGXTD00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Universal Silver)
2WP2186649B Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WP489491 Whirlpool Refrigerator Screw
6Trivet, Shelf
7WP3400012 Whirlpool Refrigerator Screw
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489464 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15Cover, Trim (Black)
23WP2154473 Whirlpool Refrigerator Connector
