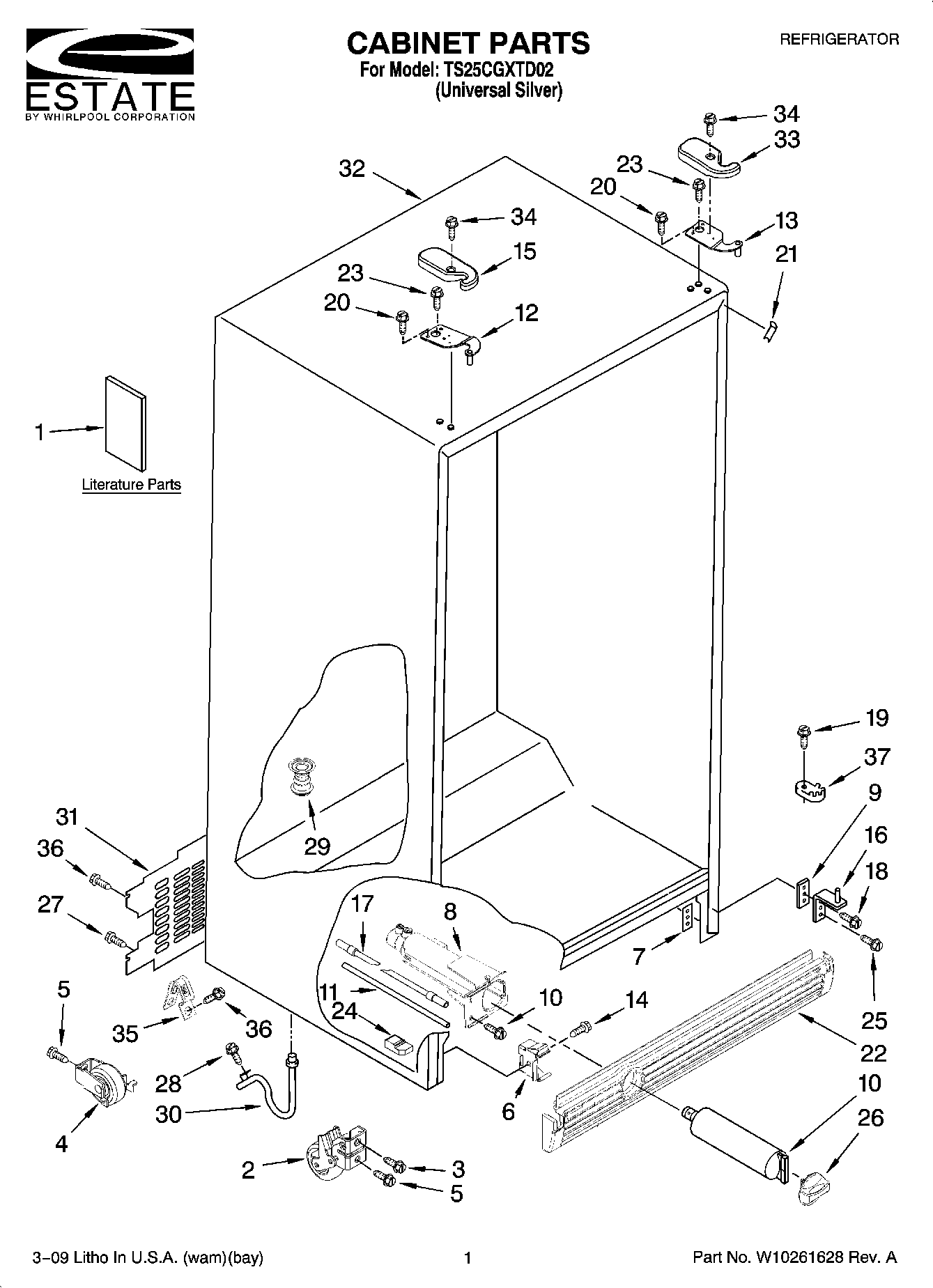

TS25CGXTD02 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Modular Icemaker Service Sheet
1	Use & Care Guide
1	Service & Wiring Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WP2186443 Whirlpool Water Filter Housing
9	WP2209697 Whirlpool Refrigerator Shim
10	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
11	WPW10350006 Whirlpool Refrigerator Water Tube
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407B Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
18	WP489497 Whirlpool Screw
19	WP489483 Whirlpool Screw
20	W10853301 Whirlpool Refrigerator Screw
21	W11252732 Whirlpool Refrigerator Filler
22	W10803964 Whirlpool Grille Assembly
24	Block, Housing Support
25	W10856122 Whirlpool Refrigerator Screw
26	WP2186494B Whirlpool Refrigerator Filter Cap
27	WP488488 Whirlpool Refrigerator Screw
28	WP489464 Whirlpool Refrigerator Screw
29	W11566763 Whirlpool Fitting
30	W11512417 Whirlpool Drain Connector
31	WP2188755 Whirlpool Rear Panel
32	Cabinet, (Not A Serviceable Part)
33	WP2203408B Whirlpool Refrigerator Cover
34	WP8281227 Whirlpool Screw
35	549193 Whirlpool Refrigerator Power Clamp
37	WPW10329686 Whirlpool Door Cam Black
