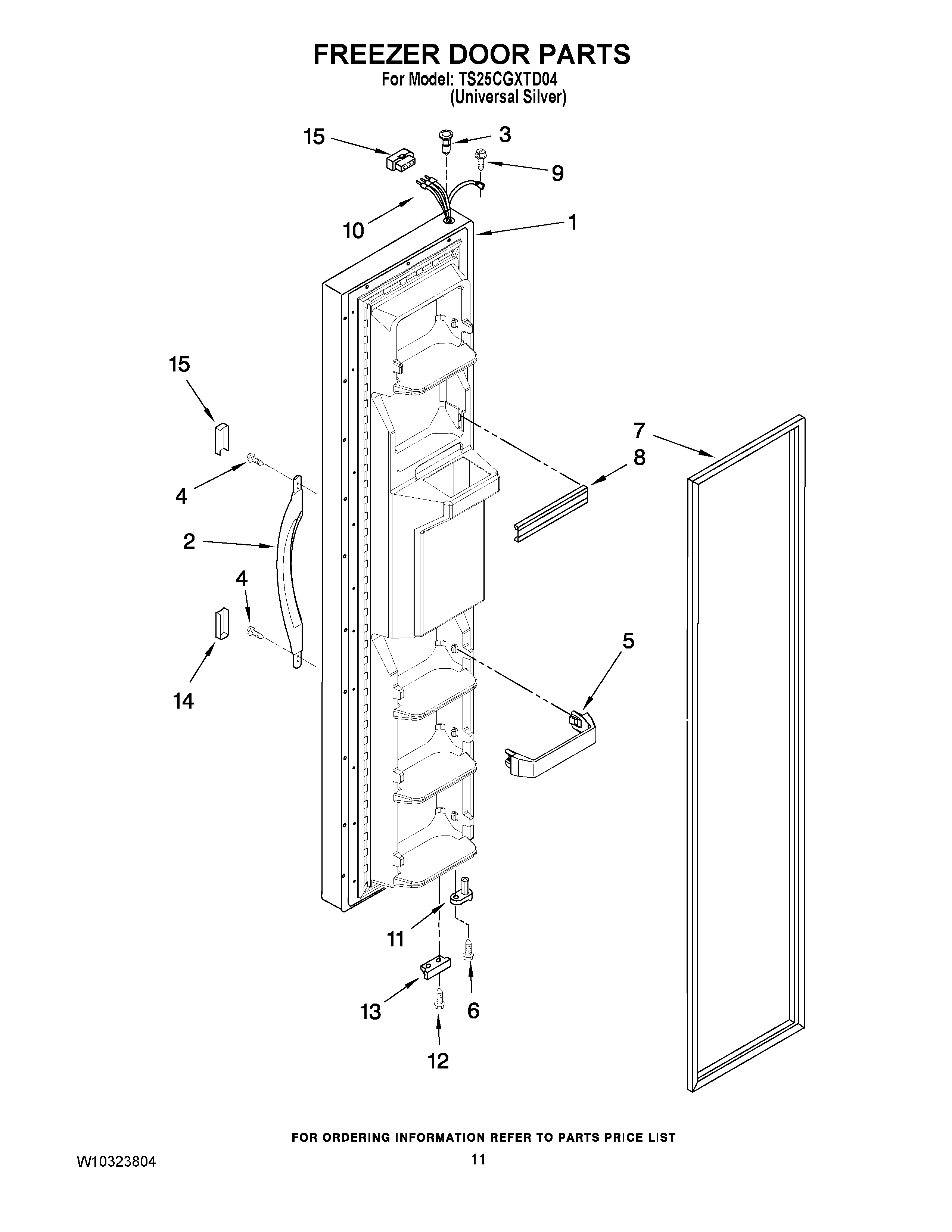

TS25CGXTD04 07 – FREEZER DOOR PARTS

TS25CGXTD04 07 – FREEZER DOOR PARTS

Written by

in

TS25CGXTD04 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Universal Silver)
2Handle (Black)
3WP2182181 Whirlpool Refrigerator Thimble
4WP489491 Whirlpool Refrigerator Screw
5WP2171157 Whirlpool Shelf Trim
6WP3400012 Whirlpool Refrigerator Screw
72159082 Whirlpool Freezer Door Gasket Black
8WPW10307490 Whirlpool Door Trim Assembly
9WP489464 Whirlpool Refrigerator Screw
102311641 Whirlpool Refrigerator Wire Harness
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Black)
14WP2194272B Whirlpool Refrigerator Handle Endcap
15WP2154473 Whirlpool Refrigerator Connector
