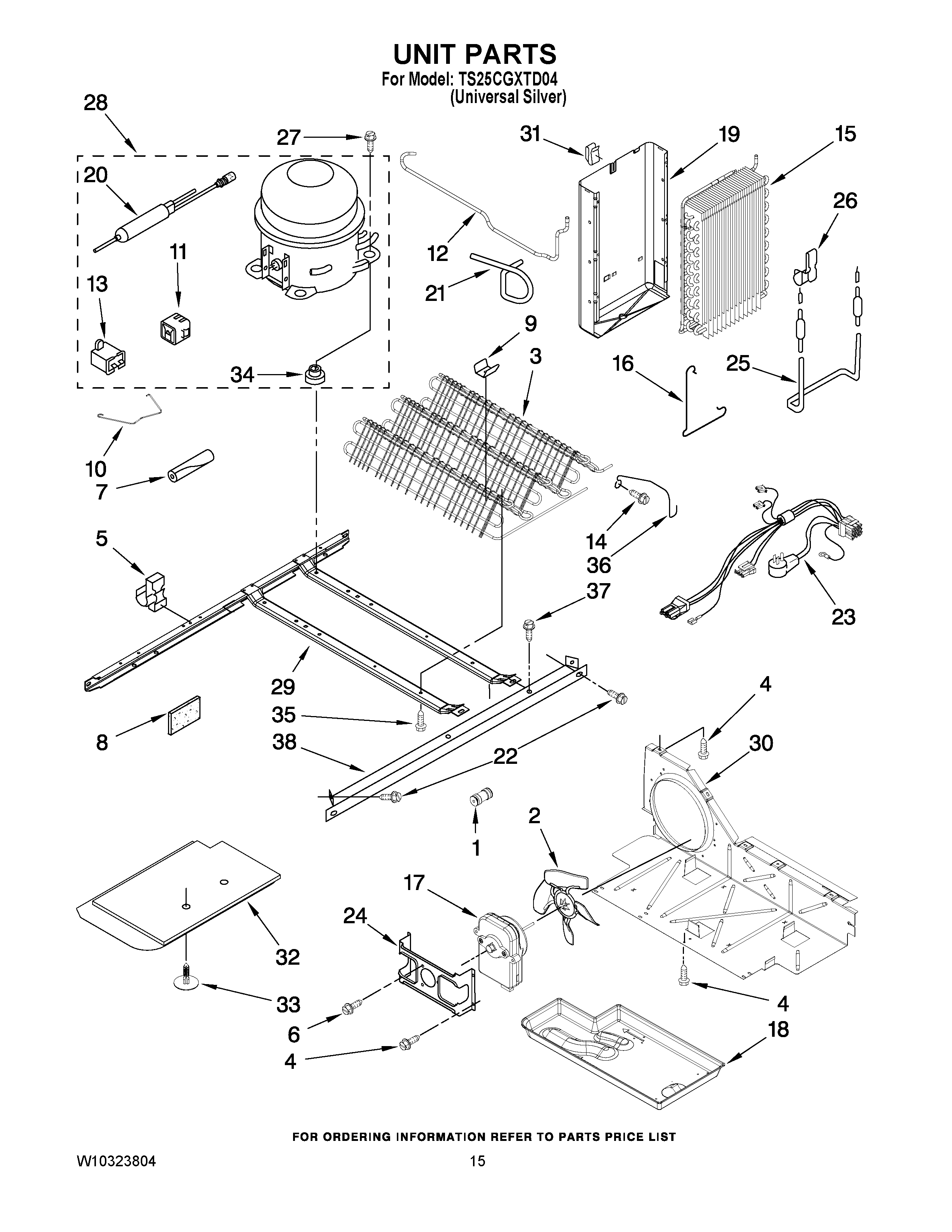

TS25CGXTD04 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	W11553819 Whirlpool Refrigerator Insulation
9	W10683556 Whirlpool Refrigerator Clip
10	W10174383 Whirlpool Clip
11	W10896198 Whirlpool Refrigerator Start Device
11	WPW10189190 Whirlpool Start Device
12	W10210786 Whirlpool Refrigerator Tube
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	WP489478 Whirlpool Refrigerator Screw
15	WP2188823 Whirlpool Refrigerator Evaporator
17	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
18	WPW10614158 Whirlpool Refrigerator Evaporator Tray
19	W10194475 Whirlpool Refrigerator Shield
20	WPW10143759 Whirlpool Dryer Filter
21	W10274306 Whirlpool Refrigerator Tube
22	489340 Whirlpool Refrigerator Screw
23	UNIT, HARNESS (INCLUDES POWER CORD)
24	WP2181929 Whirlpool Refrigerator Bracket
25	WP2323198 Whirlpool Refrigerator Heater
26	Clamp
28	W10233961 Whirlpool Refrigerator Compressor
29	W10196321 Whirlpool Refrigerator Frame
30	Air Baffle
31	Clip, Heat Shield
32	Unit Cover, Bottom
33	489396 Whirlpool Refrigerator Clip
34	876811 Whirlpool Grommet
35	W11544659 Whirlpool Refrigerator Screw
36	Guard, Fan
37	WP489427 Whirlpool Refrigerator Screw
38	WPW10196323 Whirlpool Refrigerator Rail Assembly
