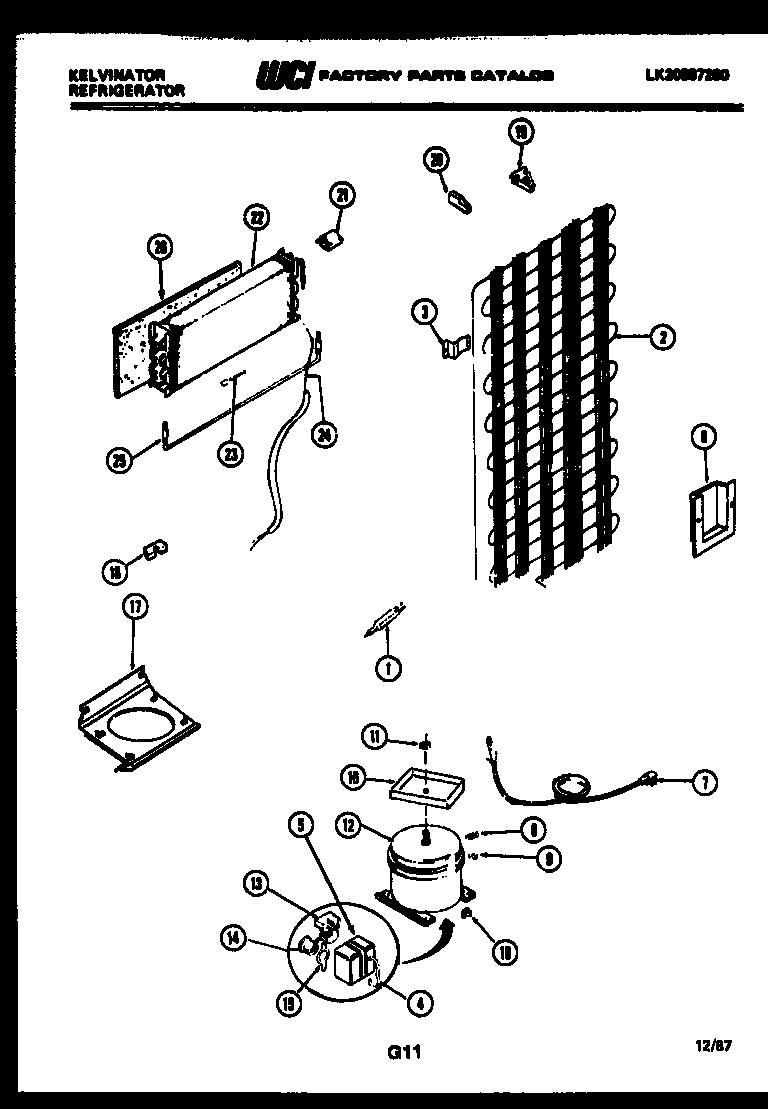

TSI180EN0V 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*14208	WCI G167234
*14207	HARNESS-COMPRESSOR
*14207	HOT TUBE REPAIR KIT
*14208	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G162739
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI G183584
7	CORD, SERVICE
8	CLIP, COMPRESSOR MOUNTING (4)
9	WASHER, COMPRESSOR MOUNTING (4)
10	218513300 Frigidaire Refrigerator Compressor Mount Grommet
11	NUT, LOCK
12	COMPRESSOR WITH ELECTRICALS
13	WCI G182225-11
14	WCI G185810
15	RETAINER, OVERLOAD
16	DEFROST PAN & NUT
17	PLATE
18	BLOCK, LEFT SIDE
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	EVAPORATOR
23	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24	HEAT, EXCHANGE
25	5317842502 Frigidaire Defrost Heater
26	INSULATOR
