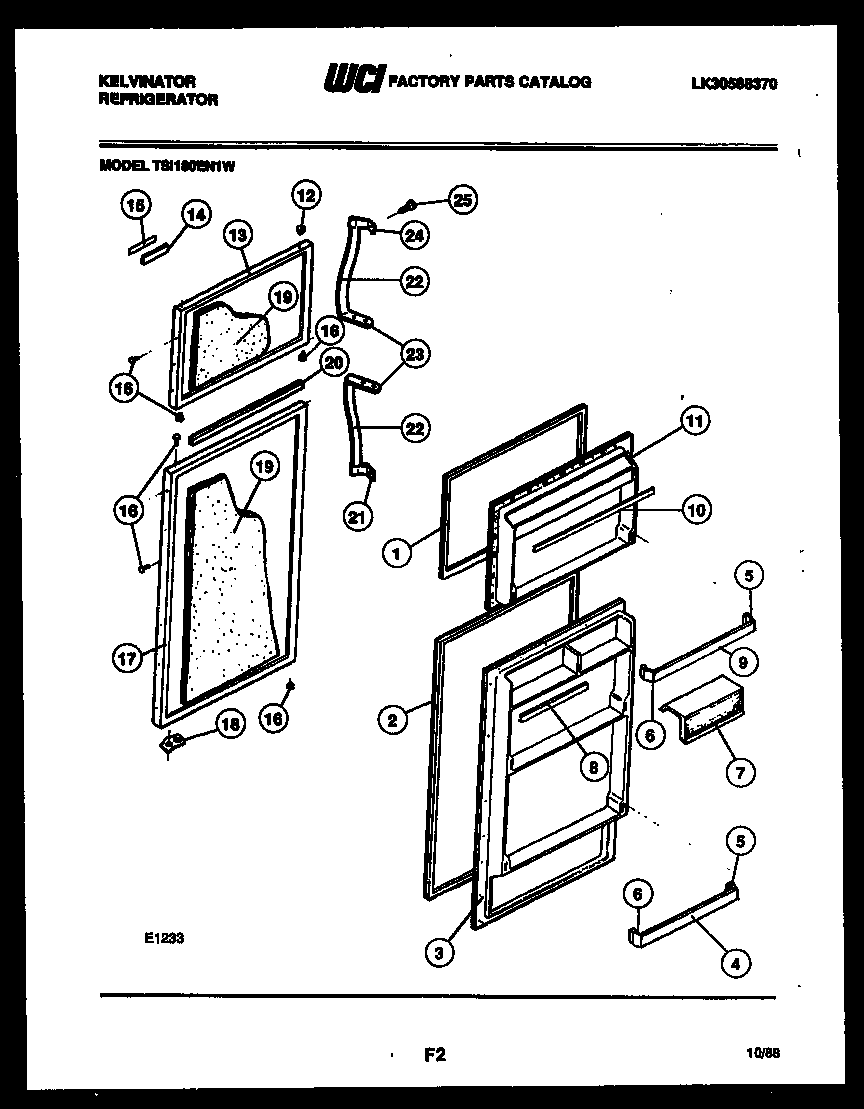

TSI180EN1T 02 – DOOR PARTS

Products

Position	Product
1	GASKET
2	GASKET
3	INNER PANEL
4	WCI 3015061
5	SUPPORT RS (3)
6	SUPPORT LS (3)
7	DOOR, DAIRY
8	WCI 3015603
9	WCI 3015060
10A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
10	WCI 3015063
11	INNER PANEL
11A	5304455651 Frigidaire Refrigerator Screw
12	WCI G169332-09
13	WCI 3916270
14A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
14	NAMEPLATE FRAME
15	LABEL-NAMEPLATE
16	WCI G162977-09
17A	BEARING, HINGE (3)
17	REFR DOOR (WHEAT)
18	STOP, DOOR. PC & FC (2)
19	WCI G89643
20	TRIM-REFRIGERATOR DOOR
21	WCI G189451-01
22	WCI 3201377
22A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
23	END-HANDLE (2)
24	WCI G189452-01
25	WCI G185566
