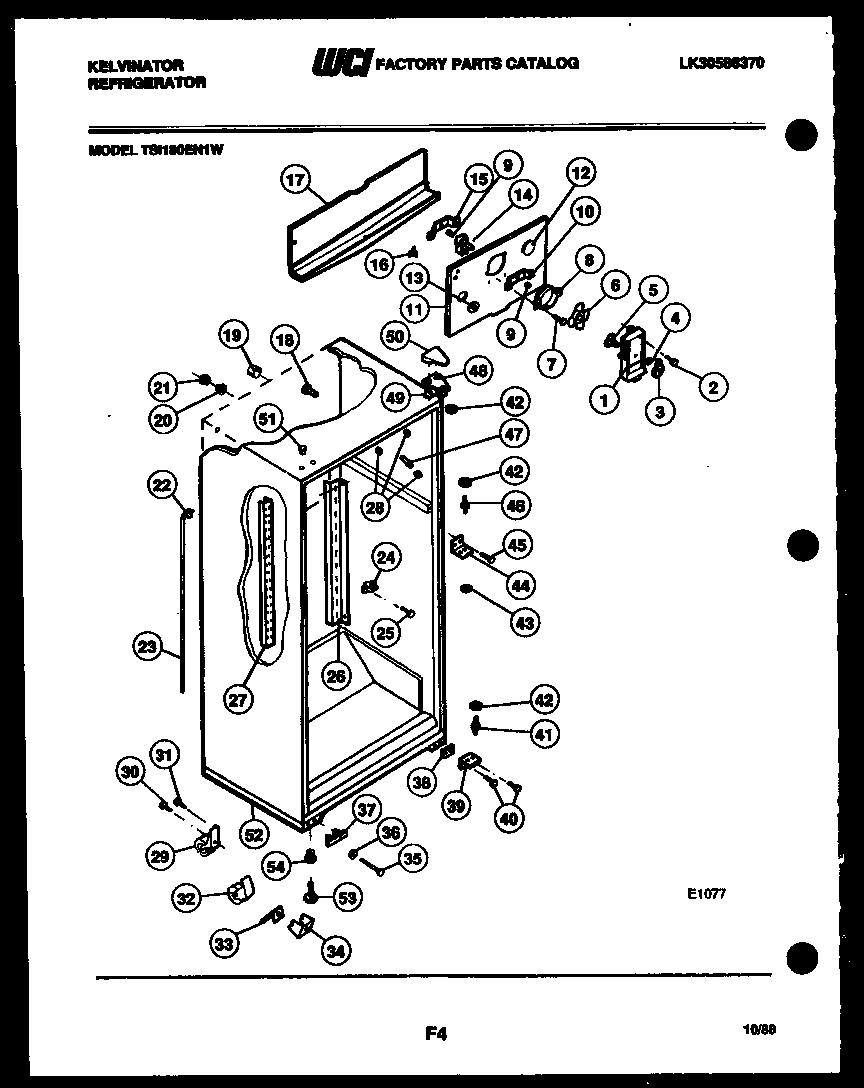

TSI180EN1T 03 – CABINET PARTS

Products

Position	Product
*49820	BUTTON, LINER
1	WCI G163061-86
2	5304455650 Frigidaire Refrigerator Screw
3	KNOB-DAMPER
4	NUT, DAMPER MOUNTING
5	DAMPER FAN COVER
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	RING, FAN ORIFICE
9	G187559 Frigidaire Refrigerator Bushing
10	WCI G185302
11A	NUT, ORIFICE (2)
11	WCI G177529
12	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
13	5303001147 Frigidaire Refrigerator Plug-Harness Hole
14	5300158289 Frigidaire Evaporator Fan Motor
15	WCI G185303
16	WCI G164571
16A	5304455651 Frigidaire Refrigerator Screw
17	WCI G177534
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	RING, SEAL (NON-ILLUSTRATED)
23	TUBE, DRAIN
24	SPOUT DRAIN TUBE
25	PIN PUSH SPOUT (2)
26	CHANNEL, SHELF (2)
26A	5304455852 Frigidaire Refrigerator Screw
27	WCI G189341
27A	SCREW (3) (NON-ILLUSTRATED)
28	5304509705 Frigidaire Refrigerator Grommet
28A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
29	ROLLER, REAR (2)
30	BOLT ROLLER (2)
32	ROLLER FRONT, ADJUSTABLE (2)
33	SPRING-ROLLER (2)
34	SUPPORT, ROLLER (2)
35	BOLT-ROLLER (2)
36	WASHER
37	WCI G166912
38	SHIM, HINGE
39	BRACKET-HINGE
40A	TAPPING, PLATE (2)
41	5303001321 Frigidaire Refrigerator Lower Hinge Pin
42	WCI G103903
43	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
44	BRACKET, HINGE CENTER
45A	WASHER (2)
45	SCREW, BRACKET MOUNTING (4)
46	WCI G142220
47	WCI G179684-09
48A	241710601 Frigidaire Refrigerator Screw
48	BRACKET, TOP HINGE
49	WCI G183861
50	COVER HINGE, WHEAT
51	WCI G174747-09
52	WCI G490004-02
53	LEG-LEVELING (2)
54	NUT, ANCHOR (2)
