TSI180EN1T 04 – SHELVES AND SUPPORTS

TSI180EN1T 04 – SHELVES AND SUPPORTS

Written by

in

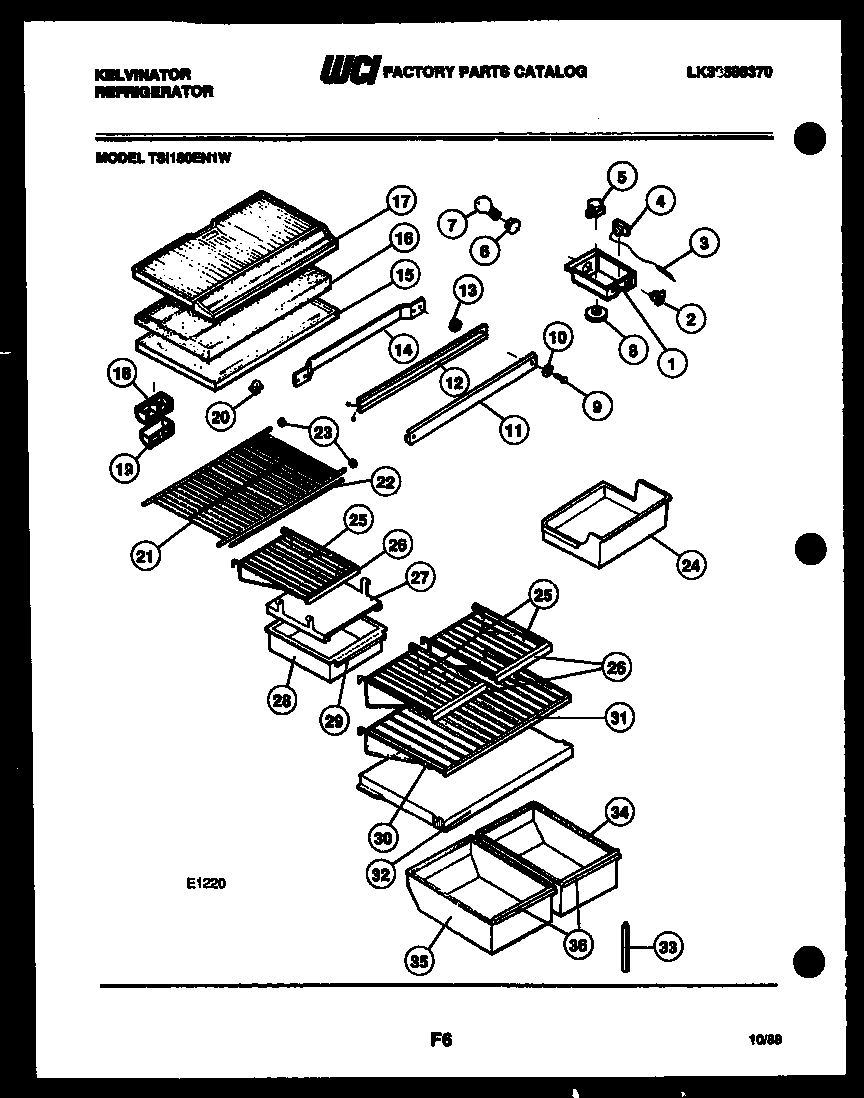

TSI180EN1T 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1ALABEL
1B5304455650 Frigidaire Refrigerator Screw
1WCI G176722-03
2SWITCH SLIDE
3TUBE
4WCI 3200810
4AWCI G107080
5215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
5A5304455649 Frigidaire Refrigerator Screw
6SOCKET LIGHT
7316538904 Frigidaire Oven Lamp Light
8KNOB
9SCREW, BRACKET MOUNTING (4)
10WASHER (2)
11WCI 3200368
12WCI 3018916
13SPACER (NON-ILLUSTRATED)
14STRAP, MULLION MOUNTING
15TOP-REFRIGERATOR
16DIVIDER, CENTER
16AHARNESS, WIRING
17BOTTOM, FC
18DEFLECTOR AIR
19WCI G162178
205309918806 Frigidaire Refrigerator Light Switch Door
21WCI G177059-02
22TRIM, SHELF, FREEZER
23WCI G166495-01
245303212918 Frigidaire Refrigerator Cont
25WCI G177390-03
26TRIM, SHELF, FRONT, 13-7/16“ (4)
27WCI G177106-01
28WCI G177623-06
29WCI G161013-67
30SHELF FULL
31TRIM-SHELF FRONT (3)
32COVER-CRISPER
32AGASKET COVER (NON-ILLUSTRATED)
33SUPPORT, CRISPER COVER
34PAN-CRISPER
35PAN-CRISPER
36TRIM (2)
