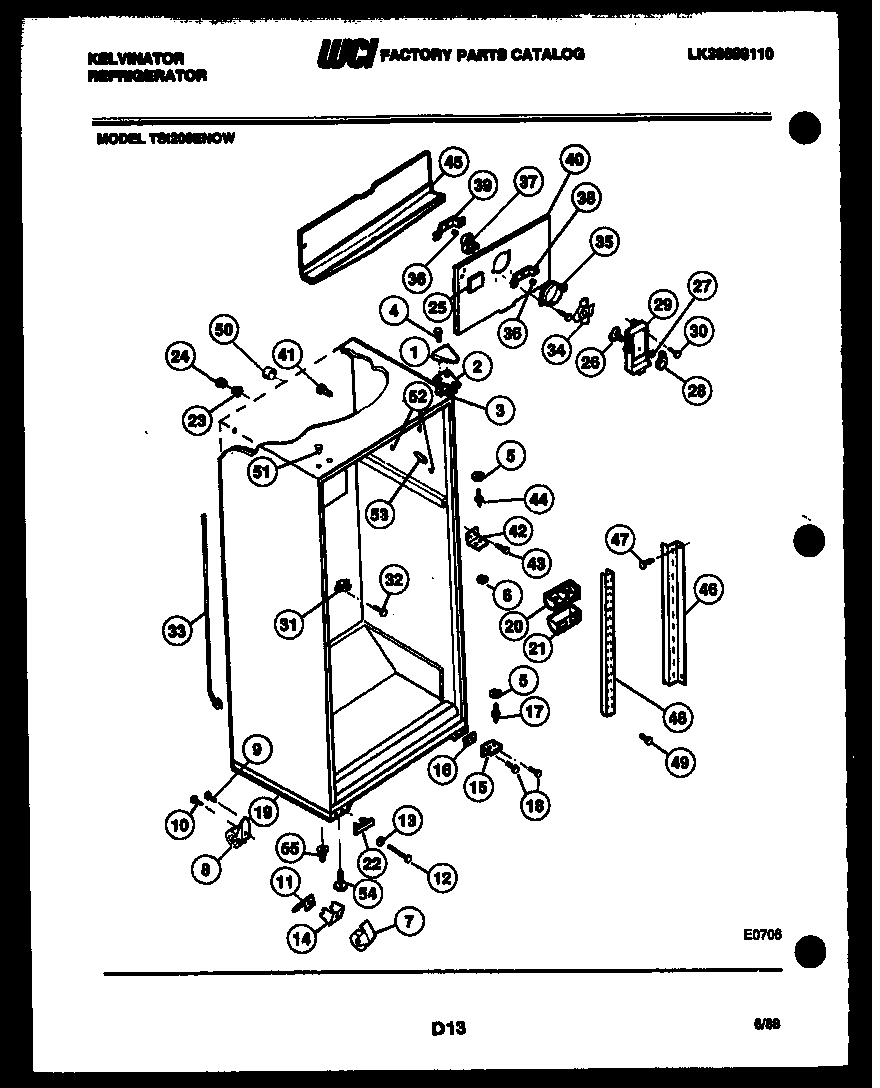

TSI206EN0V 03 – CABINET PARTS

Products

Position	Product
*41497	BUTTON, PLUG, LINER (2)
*41498	BUTTON, LINER
1	COVER, TOP HINGE, AVOCADO
2A	TAPPING, PLATE (2)
2	BRACKET, TOP HINGE
3	WCI G183861
4	241710601 Frigidaire Refrigerator Screw
5	WCI G103903
6	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7	ROLLER FRONT, ADJUSTABLE (2)
8	ROLLER, REAR (2)
10	BOLT ROLLER (2)
11	SPRING-ROLLER (2)
12	BOLT-ROLLER (2)
13	WASHER
14	SUPPORT, ROLLER (2)
15	BRACKET-HINGE
16	SHIM, HINGE
17	5303001321 Frigidaire Refrigerator Lower Hinge Pin
19	WCI G490004-02
20	DEFLECTOR AIR
21	WCI G162178
22	WCI G166912
23	WCI G174733
24	WCI G174734
25	BUTTON DECORATIVE PLUG
26	DAMPER FAN COVER
27	NUT, DAMPER MOUNTING
28	KNOB-DAMPER CONTROL
29	WCI 3016784
30	5304455650 Frigidaire Refrigerator Screw
31	SPOUT DRAIN TUBE
32	PIN PUSH SPOUT (2)
33	TUBE, DRAIN
33A	RING, SEAL (NON-ILLUSTRATED)
34	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
35	RING, FAN ORIFICE
36	G187559 Frigidaire Refrigerator Bushing
37	5300158289 Frigidaire Evaporator Fan Motor
38	WCI G185302
39B	5304455651 Frigidaire Refrigerator Screw
39	WCI G185303
39A	WCI G164571
40	WCI G184609
40A	NUT, ORIFICE (2)
41	WCI G163669
42	BRACKET, HINGE CENTER
43	SCREW, BRACKET MOUNTING (4)
43A	WASHER (2)
44	WCI G142220
45	WCI G177534
46	CHANNEL, SHELF (2)
47	5304455852 Frigidaire Refrigerator Screw
48	WCI G189341
49	SCREW (3) (NON-ILLUSTRATED)
50	TUBE, INSULATION (2)
51	WCI G174747-08
52	5304509705 Frigidaire Refrigerator Grommet
52A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
53	TRIM CORNER (4), AVOCADO
54	LEG-LEVELING (2)
55	NUT, ANCHOR (2)
