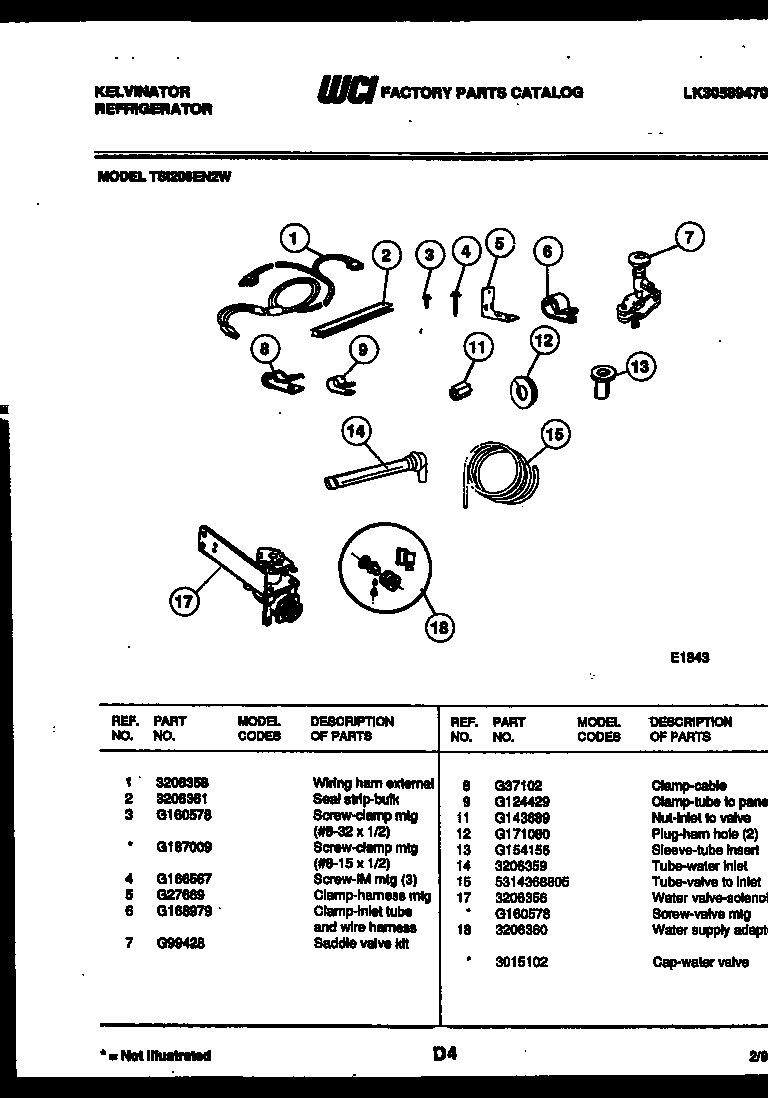

TSI206EN2D 07 – ICE MAKER INSTALLATION PARTS

TSI206EN2D 07 – ICE MAKER INSTALLATION PARTS

Written by

in

TSI206EN2D 07 – ICE MAKER INSTALLATION PARTS

Products

PositionProduct
*96129WCI 3015102
1HARNESS-WIRING, ICE MAKER
25305877995 Frigidaire Refrigerator P-1 Sealing Strip
3A5304455651 Frigidaire Refrigerator Screw
45304455852 Frigidaire Refrigerator Screw
55303001199 Frigidaire Refrigerator Wiring Harness Clamp
6240396801 Frigidaire Refrigerator Tube Clamp
7WCI G99428
85304455846 Frigidaire Refrigerator Clamp
95303001193 Frigidaire Refrigerator Clamp
11NUT, INLET TO SOLENOID VALVE
125303001147 Frigidaire Refrigerator Plug-Harness Hole
13WCI G154156
14215456100 Frigidaire Refrigerator Water Inlet Tube
155308010366 Frigidaire Refrigerator P1-Water Inlet Tube
17A5308000039 Frigidaire Refrigerator Screw
17VALVE-WATER
18ADAPTER-WATER SPLY
