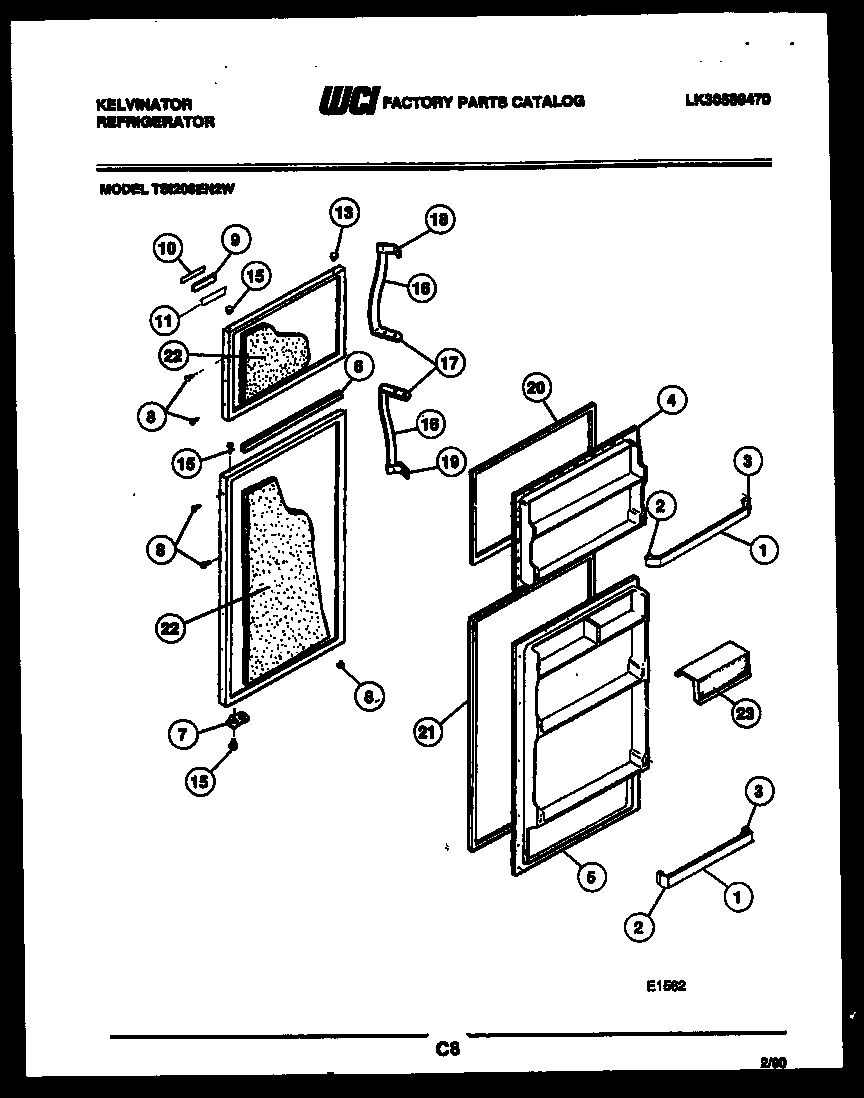

TSI206EN2T 02 – DOOR PARTS

Products

Position	Product
1	WCI 3016516
2	SUPPORT LS (3)
3	SUPPORT RS (3)
4	WCI 3016517
5	INNER PANEL-REFRIGERATOR
5A	5304455651 Frigidaire Refrigerator Screw
6	TRIM-REFRIGERATOR DOOR
7	STOP, DOOR. PC & FC (2)
8	WCI G162977-09
9	NAMEPLATE FRAME
10	LABEL-NAMEPLATE
11	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
12	REFR DOOR (WHEAT)
13	WCI G169332-09
14	WCI 3916408
15	BEARING, HINGE (3)
16	WCI 5303201377
16A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
16B	WCI G185566
17	END-HANDLE (2)
18	WCI G189452-01
19	WCI G189451-01
20	GASKET
21	GASKET
22	INSULATION-BULK
23	DAIRY DOOR (2)
