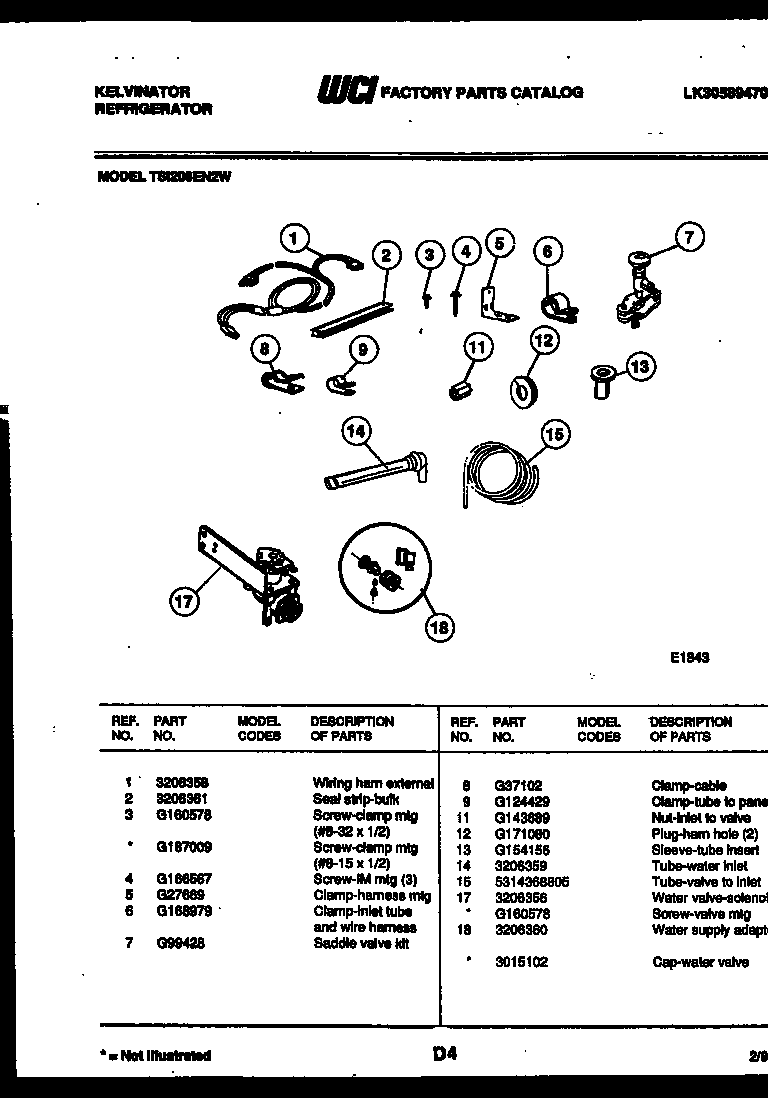

TSI206EN2V 07 – ICE MAKER INSTALLATION PARTS

Products

Position	Product
*96129	WCI 3015102
1	HARNESS-WIRING, ICE MAKER
2	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
3A	5304455651 Frigidaire Refrigerator Screw
4	5304455852 Frigidaire Refrigerator Screw
5	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
6	240396801 Frigidaire Refrigerator Tube Clamp
7	WCI G99428
8	5304455846 Frigidaire Refrigerator Clamp
9	5303001193 Frigidaire Refrigerator Clamp
11	NUT, INLET TO SOLENOID VALVE
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
13	WCI G154156
14	215456100 Frigidaire Refrigerator Water Inlet Tube
15	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
17A	5308000039 Frigidaire Refrigerator Screw
17	VALVE-WATER
18	ADAPTER-WATER SPLY
