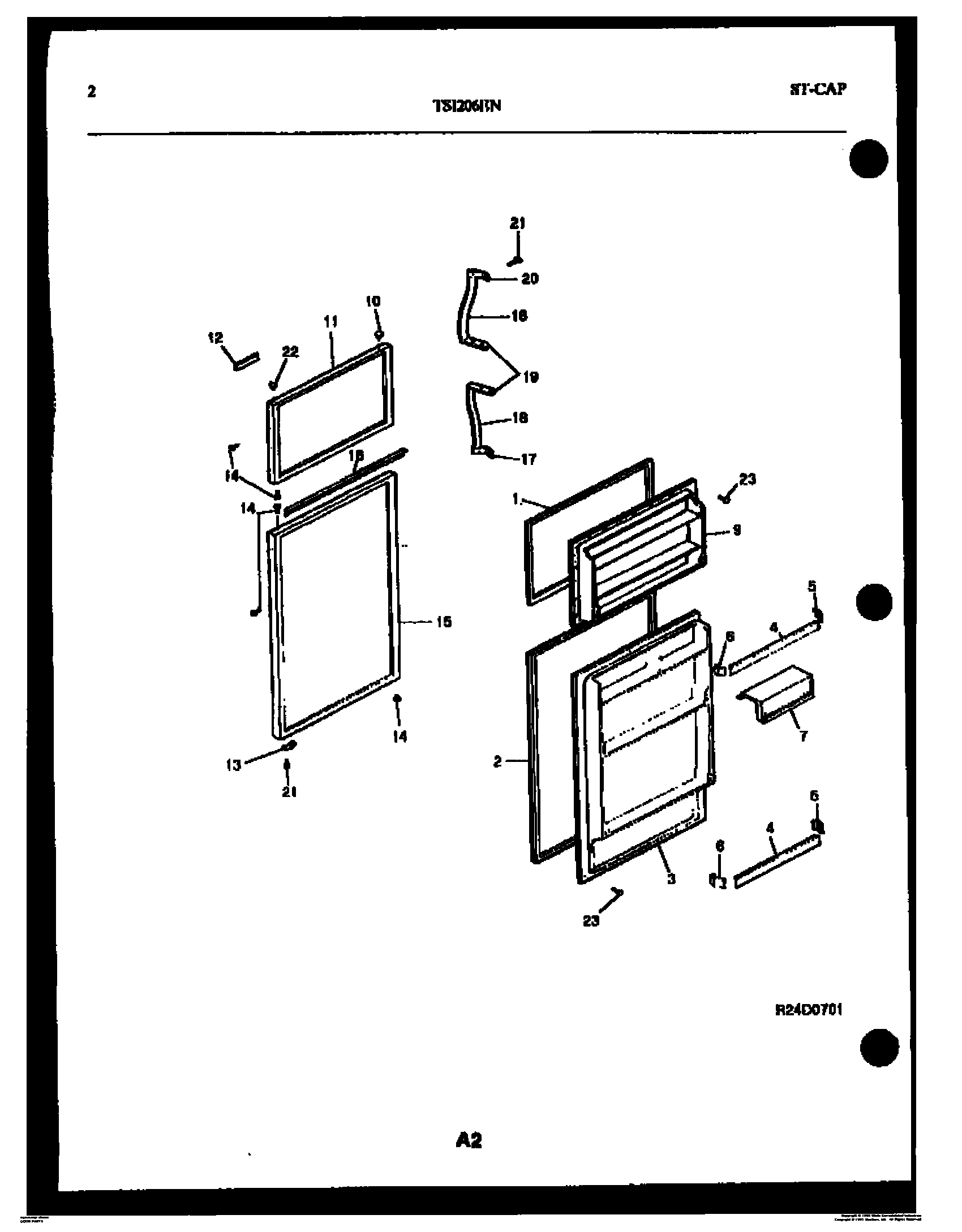

TSI206EN3D 02 – DOOR PARTS

Products

Position	Product
*19107	INSULATION-BULK (NON-ILLUSTRATED)
1	GASKET-FRZR
2	GASKET-REFRIG DOOR
3	INNER PANEL-REFRIGERATOR
4	WCI 3016516
5	WCI 5317828701
6	WCI 5317828401
7	DAIRY DOOR (2)
9	WCI 3016517
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	PANEL-FRZR DOOR, ALMOND
12	NAMEPLATE-ASSY
13	WCI 5308000255
13	DOOR STOP, REFR SECTION
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	REFR DOOR-ALMOND
16	TRIM-REFRIGERATOR DOOR
17	HANDLE, END-BOTTOM
18	WCI 5303201377
18	TRIM INSERT-GRIP (2)
19	WCI 5318945301
20	HANDLE END-TOP
21	WCI 5308011745
22	BEARING-HINGE
23	5304455651 Frigidaire Refrigerator Screw
