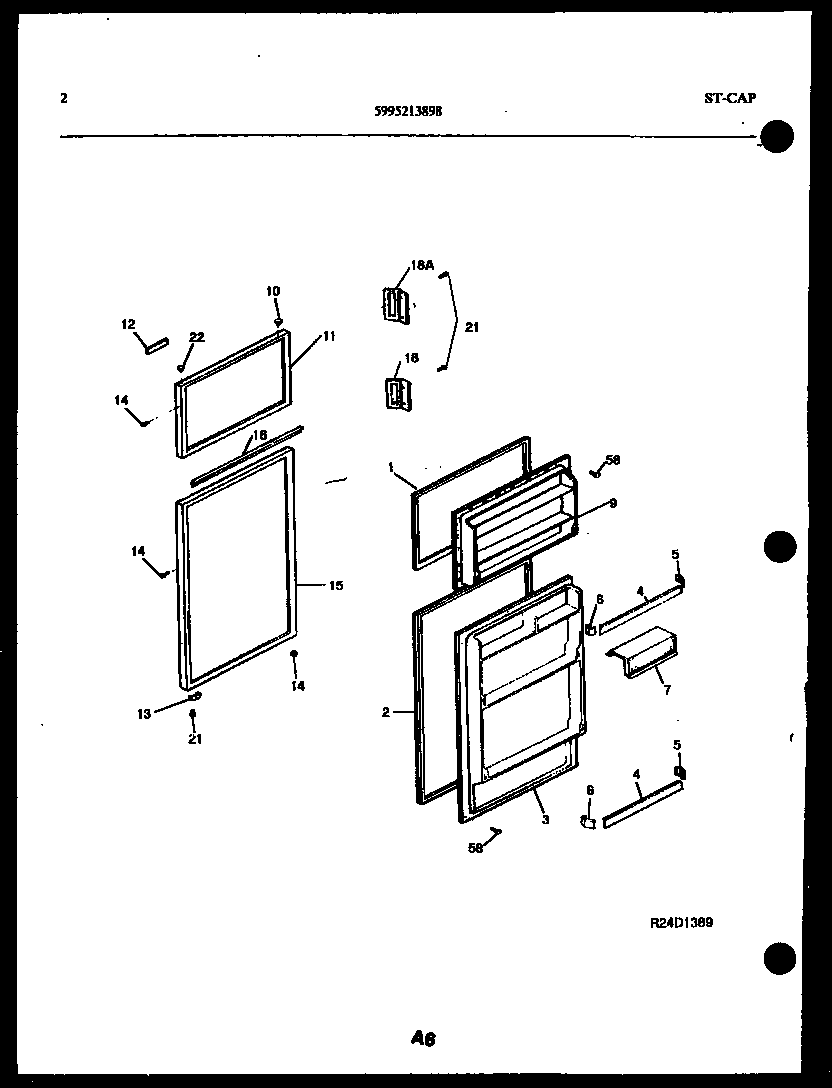

TSI210HN0D 02 – DOOR PARTS

TSI210HN0D 02 – DOOR PARTS

Written by

in

TSI210HN0D 02 – DOOR PARTS

Products

PositionProduct
*22639INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR
2GASKET-REFRIG DOOR
3WCI 5303273170
4WCI 5303273152
5WCI 5317828701
6WCI 5317828401
7WCI 5303273147
9WCI 3016517
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917083
12WCI 5303273164
13WCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303916886
16WCI 5318755102
18HANDLE-DOOR, REFR
18AHANDLE-DOOR, FRZR
21WCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
