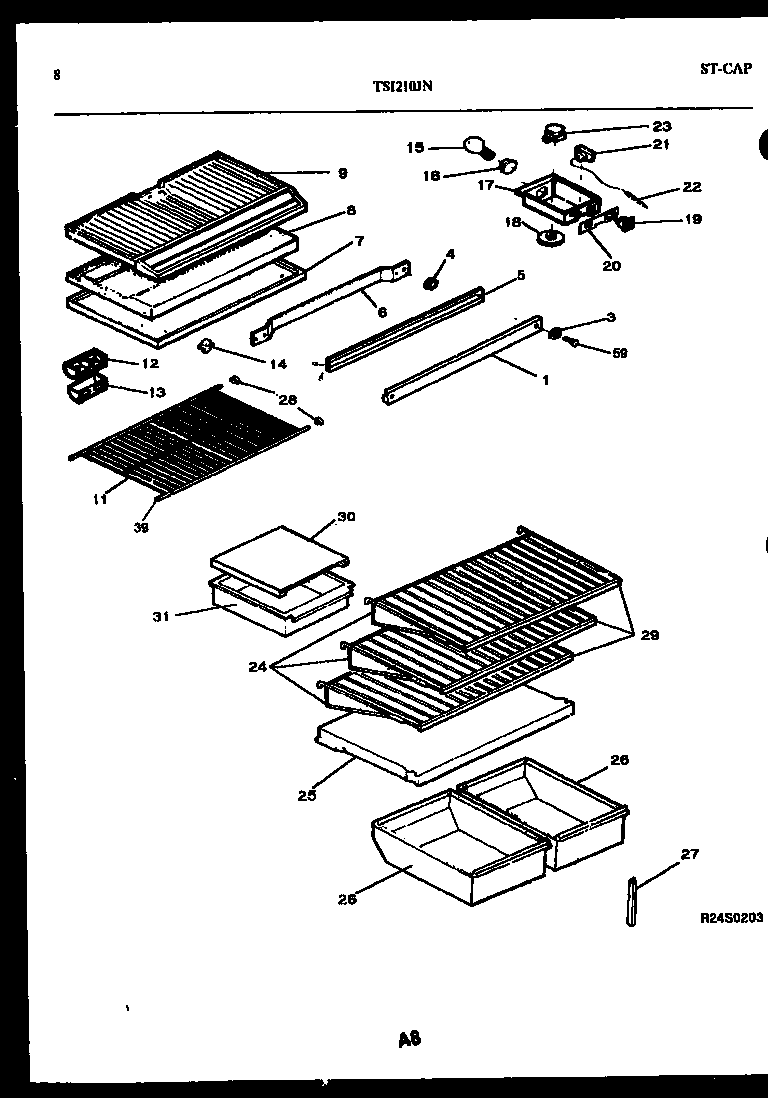

TSI210JN0D 05 – SHELVES AND SUPPORT

TSI210JN0D 05 – SHELVES AND SUPPORT

Written by

in

TSI210JN0D 05 – SHELVES AND SUPPORT

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP-REFRIGERATOR
7WCI 5303001380
8WCI 5308013674
8HARNESS-DIVIDER (NON-ILLUSTRATED)
9BOTTOM, FREEZER
11WCI 5303208517
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
175304455650 Frigidaire Refrigerator Screw
17WCI 5303015152
18WCI 5308010011
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 5303273167
21WCI 5303200810
21WCI 5303001260
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24CLIP-CANTILEVER SHLF
24WCI 5303273155
25COVER-CRISPER PAN
26WCI 5303273145
26WCI 5303273188
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 5303273156
30WCI 5308000263
31WCI 5303273146
39WCI 5303273157
59WCI 5308012258
