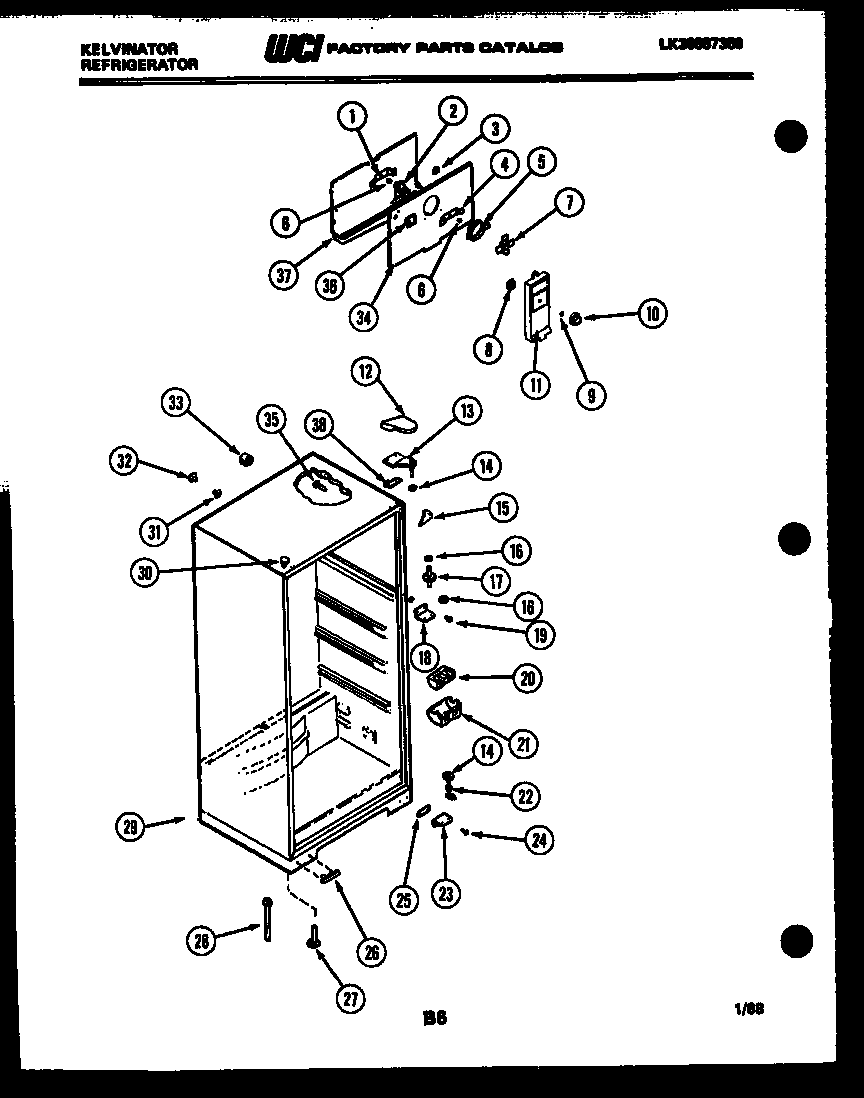

TSK140EN0V 03 – CABINET PARTS

Products

Position	Product
*23800	BUTTON, PLUG, LINER (2)
*23801	BUTTON, LINER
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
3A	5304455651 Frigidaire Refrigerator Screw
4	WCI G185302
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER FAN COVER
9	NUT, DAMPER MOUNTING
10	KNOB-DAMPER
11A	5304455650 Frigidaire Refrigerator Screw
11	SCREW, HANDLE MOUNTING (2)
12	COVER, TOP HINGE, AVOCADO
13A	241710601 Frigidaire Refrigerator Screw
13	BRACKET, TOP HINGE
14	WCI G103903
15	TRIM-CAB CORNER-AVOC
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW, BRACKET MOUNTING (4)
19A	WASHER (2)
20	DEFLECTOR AIR
21	WCI G162178
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	BRACKET, HINGE, LOWER
24A	TAPPING, PLATE (2)
25	SHIM, HINGE
26	WCI G166912
27A	NUT, ANCHOR (2)
27	LEG-LEVELING (2)
28	CLIP (4)
29	BASE-CABINET
30	WCI G174747-08
31	WCI G174733
32	WCI G174734
33	TUBE, INSULATION (2)
34A	NUT, ORIFICE (2)
34	COVER-COIL
35	WCI G163669
36	BUTTON DECORATIVE PLUG
37	TROUGH-DRAIN
38	WCI G183861
