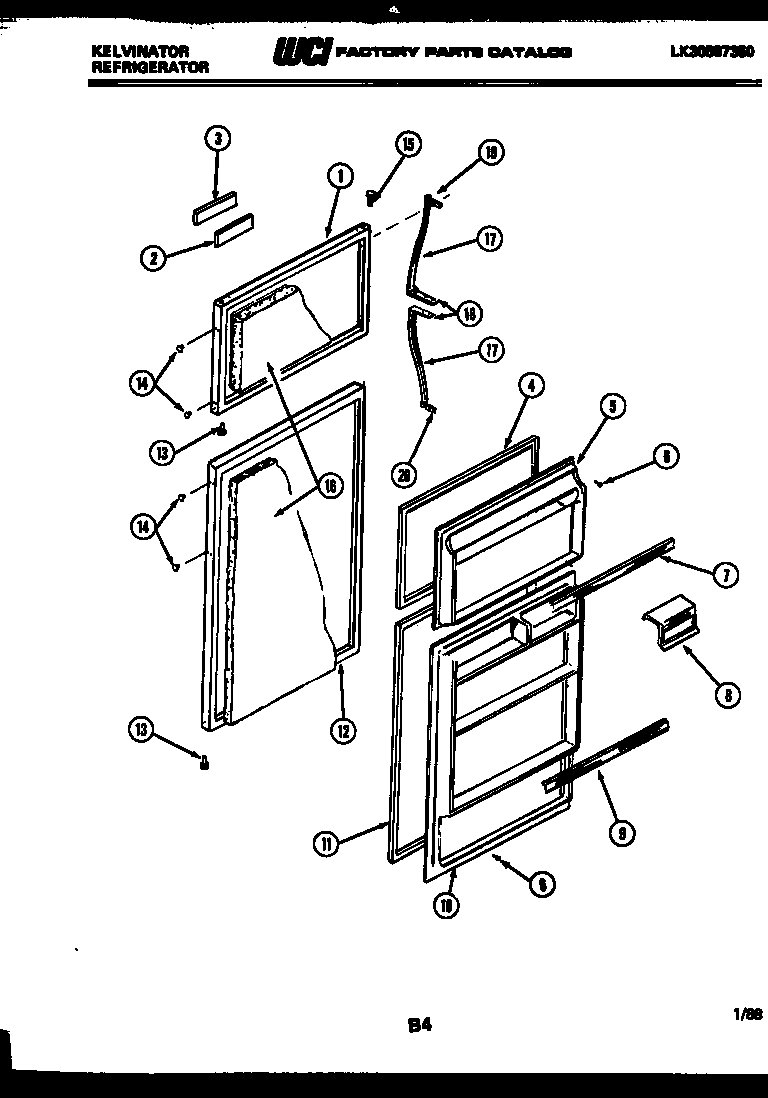

TSK140EN0W 02 – DOOR PARTS

TSK140EN0W 02 – DOOR PARTS

Written by

in

TSK140EN0W 02 – DOOR PARTS

Products

PositionProduct
*23746WCI G185566
1FREEZER DOOR-WHT
2ATAPE-FRAME MOUNTING (NON-ILLUSTRATED)
2NAMEPLATE FRAME
3LABEL-NAMEPLATE
4GASKET-FREEZER
5INNER PANEL-FRZR
65304455651 Frigidaire Refrigerator Screw
7DOOR RACK-FRZR
8DOOR, DAIRY
9WCI 3016705
10INNER PANEL-REFR
11GASKET-REFRIGERATOR
12REFR DOOR-WHT
13BEARING, HINGE (3)
14240494001 Frigidaire Refrigerator Plug Button
15WCI G169332-01
16WCI G89643
17WCI G189454-02
17AWCI G189456-01
18END-HANDLE (2)
19WCI G189452-01
20WCI G189451-01
