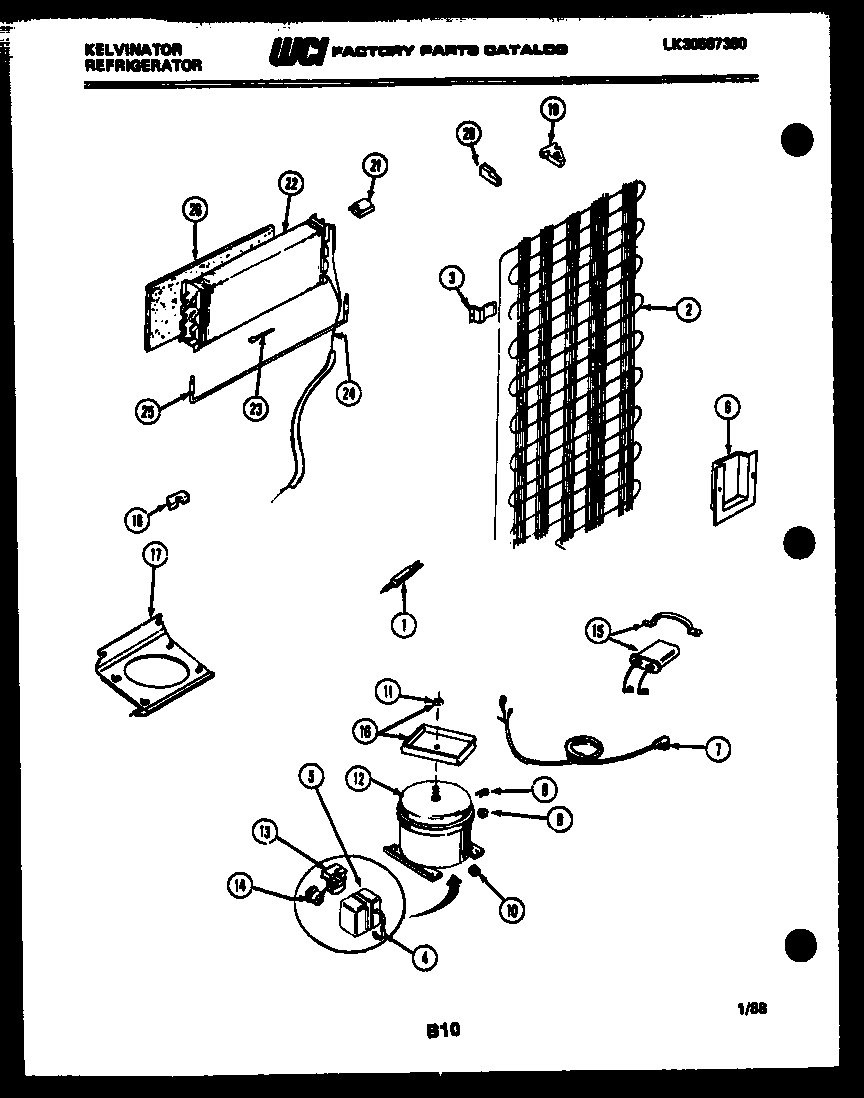

TSK140EN1D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*23843	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
*23845	WCI G167234
*23843	HARNESS-COMPRESSOR
*23844	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G178225
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI G183584
7	CORD, SERVICE
8	CLIP, COMPRESSOR MOUNTING (4)
9	WASHER, COMPRESSOR MOUNTING (4)
10	218513300 Frigidaire Refrigerator Compressor Mount Grommet
11	NUT, LOCK
12	COMPRESSOR
13	WCI G182225-18
14	OVERLOAD & MOUNTING CLIP
15	WCI G188885-01
15A	STRAP-CAPACITOR
16	DEFROST PAN & NUT
17	WCI G162822
18	BLOCK, LEFT SIDE
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI G164563
23	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24	WCI G163389
25	WCI G162432-02
26	INSULATOR
