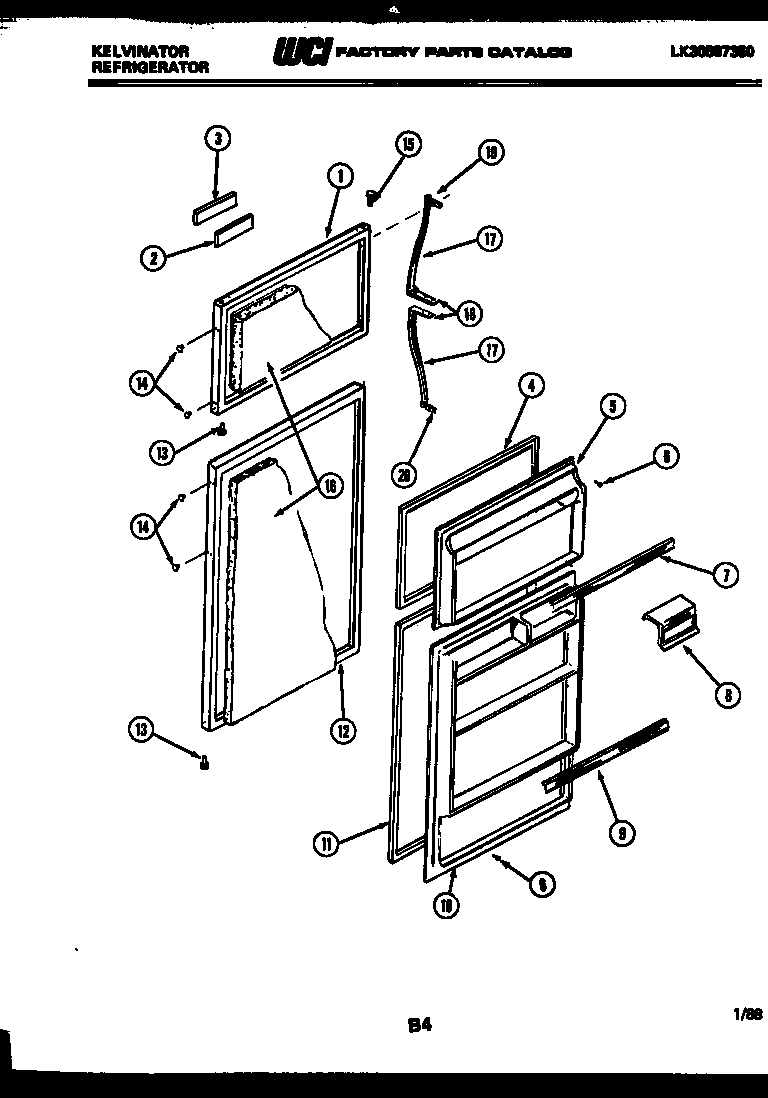

TSK140EN1F 02 – DOOR PARTS

Products

Position	Product
*23746	WCI G185566
1	FREEZER DOOR-COFE
2	NAMEPLATE FRAME
2A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3	LABEL-NAMEPLATE
4	GASKET-FREEZER
5	INNER PANEL-FRZR
6	5304455651 Frigidaire Refrigerator Screw
7	DOOR RACK-FRZR
8	DOOR, DAIRY
9	WCI 3016705
10	INNER PANEL-REFR
11	GASKET-REFRIGERATOR
12	REFR DOOR-COFE
13	BEARING, HINGE (3)
14	WCI G162977-10
15	WCI G169332-10
16	WCI G89643
17A	WCI G189456-01
17	WCI G189454-02
18	END-HANDLE (2)
19	WCI G189452-01
20	WCI G189451-01
